(8-06) - PICKUP HYDRAULIC CYLINDER ASSEMBLY, 700712122 HYDRAULIC CYLINDER COMPLETE

Запчасти Case IH 8575 (8-06) - PICKUP HYDRAULIC CYLINDER ASSEMBLY, 700712122 HYDRAULIC CYLINDER COMPLETE (07) - HYDRAULICS

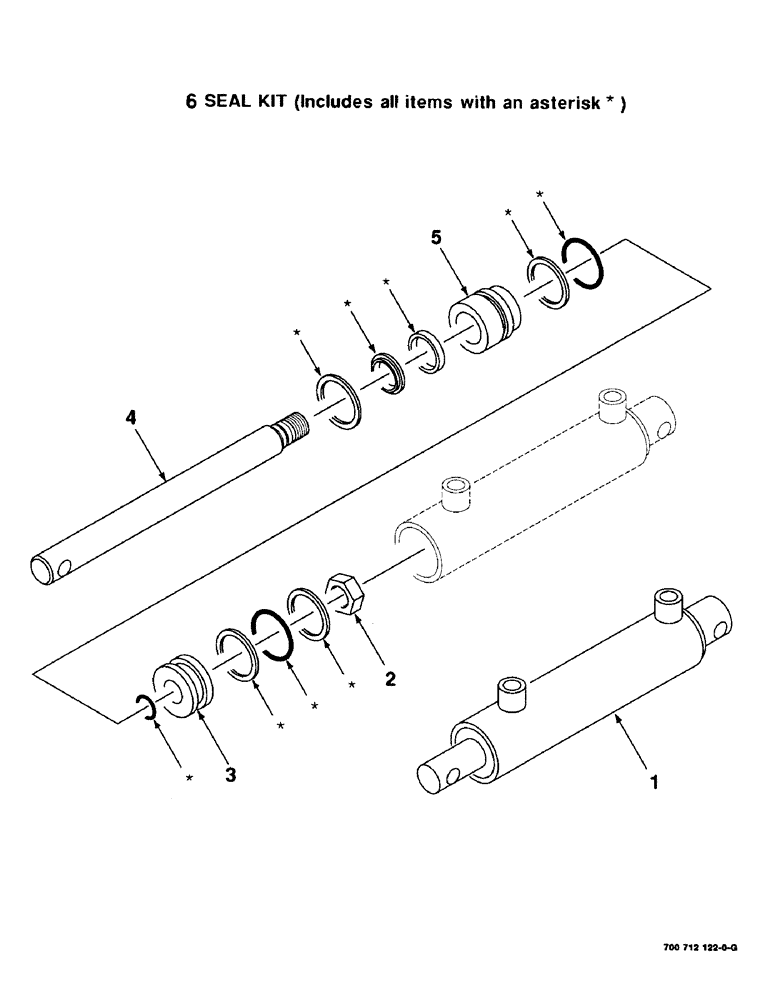

Схема запчастей Case IH 8575 - (8-06) - PICKUP HYDRAULIC CYLINDER ASSEMBLY, 700712122 HYDRAULIC CYLINDER COMPLETE (07) - HYDRAULICS
4
3
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700712122

CYLINDER

HYDRAULIC CYLINDER COMPLETE (2 INCH BORE X 8 INCH STROKE)

1шт.

2

700707418

JAM NUT

7/8-14 HEX JAM NUT

1шт.

3

700707419

PISTON

1шт.

4

700709465

ROD

1шт.

5

700711112

GUIDE

-ROD

1шт.

6

700711114

SEAL KIT

SEAL AND O-RING REPAIR KIT Includes items in art marked with Asterisk

1шт.
