(8-04) - HYDRAULIC CONTROL VALVE ASSEMBLY, BALE DENSITY, 700706387 VALVE ASSEMBLY COMPLETE

Запчасти Case IH 8575 (8-04) - HYDRAULIC CONTROL VALVE ASSEMBLY, BALE DENSITY, 700706387 VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS

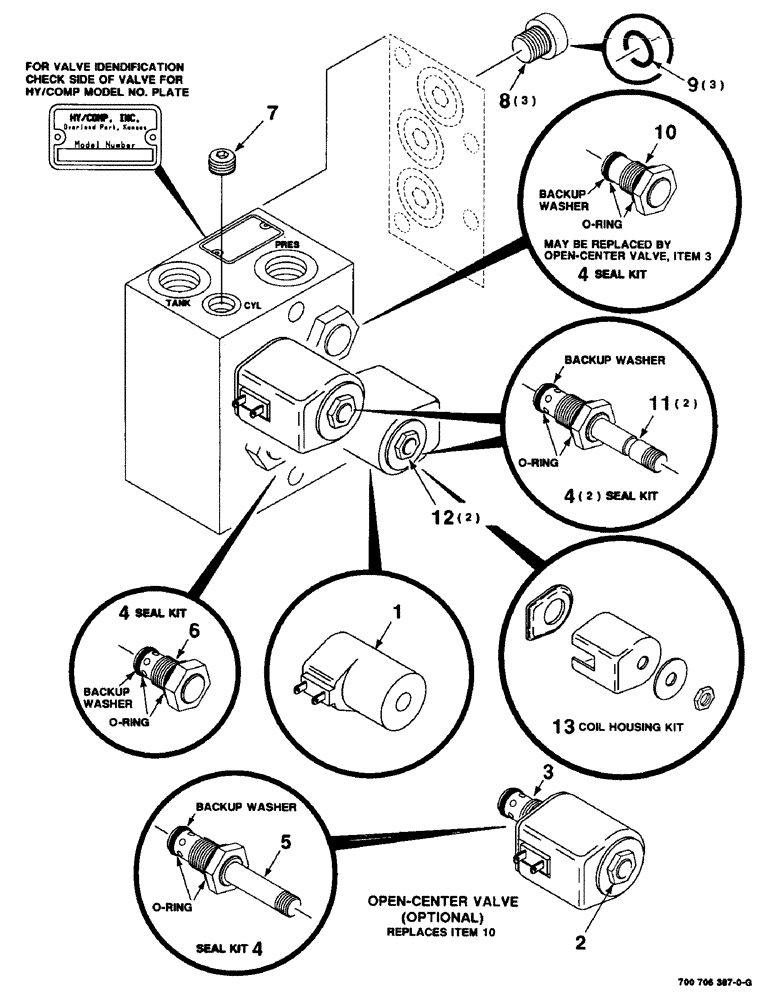

Схема запчастей Case IH 8575 - (8-04) - HYDRAULIC CONTROL VALVE ASSEMBLY, BALE DENSITY, 700706387 VALVE ASSEMBLY COMPLETE (07) - HYDRAULICS
4
1
3
5
2
11
12
9
4
6
13
10
8
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

700706387

CONTROL VALVE

VALVE ASSEMBLY COMPLETE

2шт.

1

700710176

COIL

SOLENOID-12V

1шт.

2

700706156

NUT

1шт.

3

700706386

CONTROL VALVE

VALVE (OPTIONAL) (Includes Ref: 1, 2, 4 and 5)

1шт.

4

700706154

SEAL KIT

5шт.

5

700706155

VALVE PRESSURE RELIE

CARTRIDGE

1шт.

6

700707832

VALVE PRESSURE RELIE

CHECK VALVE

1шт.

7

700706609

ORIFICE

PLUG

1шт.

8

700706604

PLUG

O-RING (Includes Ref: 9)

3шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

10

700706602

PLUG

-CARTRIDGE (Includes Ref: 4)

1шт.

11

700706153

HYDRAULIC VALVE

CARTRIDGE

2шт.

12

700706151

NUT

2шт.

13

700707826

REPAIR KIT

KIT-COIL HOUSING

1шт.
