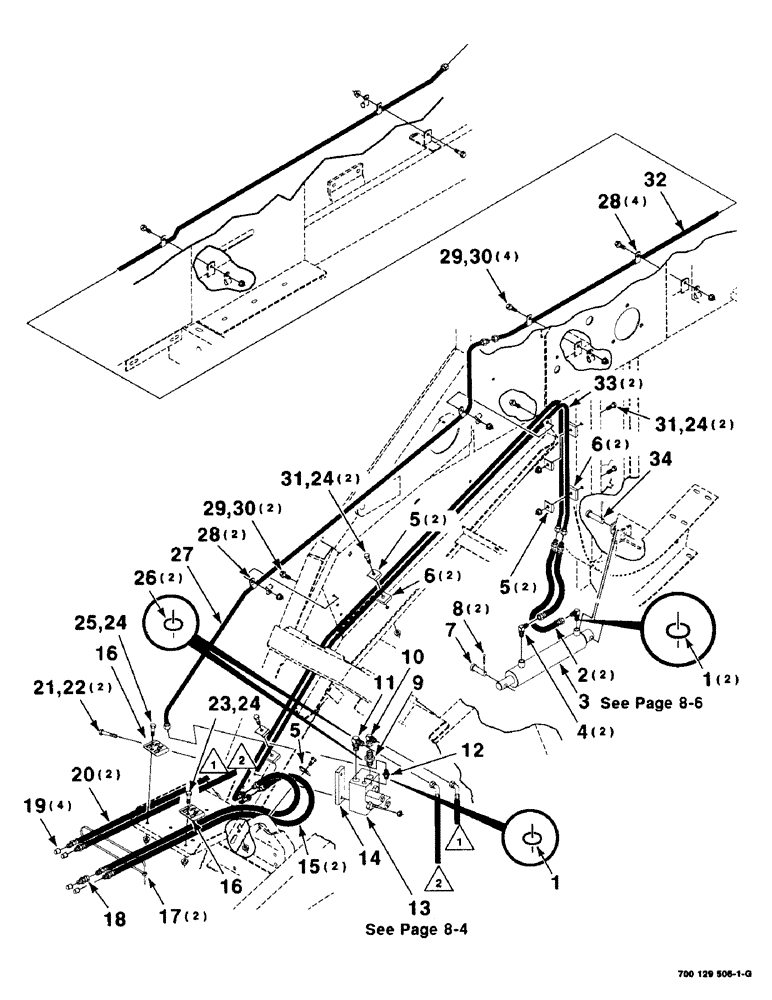

Запчасти Case IH 8575 (8-02) - HYDRAULIC ASSEMBLY, FRONT (07) - HYDRAULICS

1

738468

O-RING

3шт.

2

7872740

HOSE

-HYDRAULIC

2шт.

3

700712122

CYLINDER

-HYDRAULIC

1шт.

4

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

2шт.

5

6280036

CLAMP

5шт.

6

CAS727958

PAD

4шт.

7

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

5/8X 2 CLEVIS PIN

1шт.

8

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

2шт.

9

51200289

FITTING

-HYD (Includes Ref: 26)

1шт.

10

700701624

ELBOW

FITTING-HYDRAULIC, ELBOW

1шт.

11

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

FITTING-HYDRAULIC, ELBOW (Incl. Ref: 26)

1шт.

12

700707841

HYD CONNECTOR

CONNECTOR (Includes Ref: 1)

1шт.

13

700706387

CONTROL VALVE

VALVE-CONTROL

1шт.

14

700129674

LARGE PLATE

PLATE-SPACER

1шт.

15

700710067

HYDRAULIC HOSE,6.35 mm ID x 2000.00 mm, SAE 100R7

6.35 mm ID x 2000.00 mm, SAE 100R7

2шт.

16

700129085

CLAMP

2шт.

17

529070

CABLE TIE,368.3mm L

TIE-NYLON

2шт.

18

7846389

RESTRICTOR

1шт.

19

746677

CAP

4шт.

20

700710060

HOSE

-HYDRAULIC

2шт.

21

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

2шт.

22

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

23

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

1шт.

24

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

25

111-361

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/2", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/2", G5

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

27

700713978

TUBE

LINE-HYDRAULIC, FRONT

1шт.

28

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 CLAMP

6шт.

29

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

6шт.

30

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

6шт.

31

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

32

700710065

TUBE

LINE-HYDRAULIC

1шт.

33

700710063

TUBE

LINE-HYDRAULIC

2шт.

34

63495

CLIP

5/8 X 2-1/2 CLEVIS PIN

1шт.
