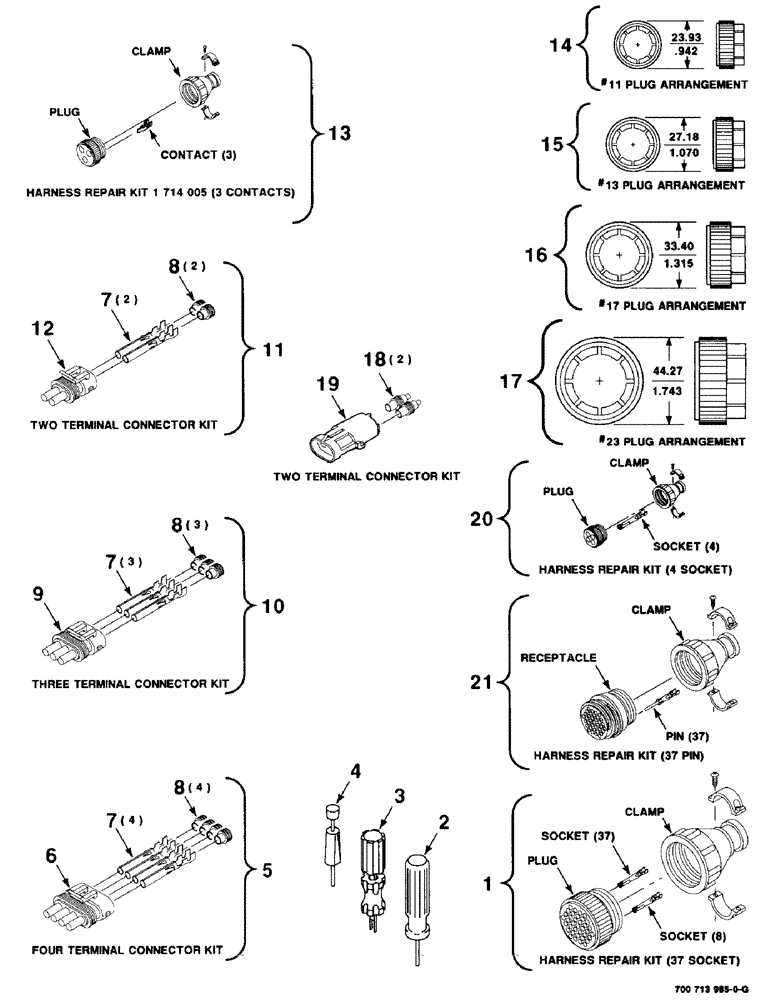

Запчасти Case IH 8575 (4-12) - ELECTRICAL HARNESS SERVICE PARTS (06) - ELECTRICAL

1

700707004

REPAIR KIT

KIT-HARNESS REPAIR

1шт.

2

700707012

TERMINAL CONNECTOR

TOOL-CONNECTOR REPAIR

1шт.

3

700707014

TERMINAL CONNECTOR

TOOL-CONNECTOR REPAIR

1шт.

4

131503C1

TOOL

-CONNECTOR REPAIR

1шт.

5

700707002

REPAIR KIT

KIT-HARNESS REPAIR (Includes Ref: 6, 7 and 8)

1шт.

6

700708963

WIRE CONNECTOR

CONNECTOR-FEMALE, 4-WIRE

1шт.

7

700708760

ELEC. TERMINAL PIN,18 - 20 SAE

SLEEVE

9шт.

8

700706400

PLUG

SEAL

9шт.

9

245484C1

ELEC CONNECTOR,3 Pin

CONNECTOR-FEMALE, 3-WIRE

1шт.

10

700707001

REPAIR KIT

KIT-HARNESS REPAIR (Includes Ref: 9, 7 and 8)

1шт.

11

700706999

REPAIR KIT

KIT-HARNESS REPAIR (Includes Ref: 12, 7 and 8)

1шт.

12

700708761

ELEC CONNECTOR,Female

CONNECTOR-, 2-WIRE Female

1шт.

13

1714005

PACKAGE,SERVICE

KIT-HARENSS REPAIR (Female end)

1шт.

The complete connector is P/N 225165c1.

1шт.

14

60-6126T2

CONNECTION

RING-COUPLING

1шт.

15

60-6127T2

CONNECTION

RING-COUPLING

1шт.

16

1301191C1

CONNECTION

RING-COUPLING

1шт.

17

60-6129T2

CONNECTION

RING-COUPLING

1шт.

18

700714829

PLUG

-CAVITY

2шт.

19

700706399

ELEC CONNECTOR,14 - 20 SAE

CONNECTOR-SHROUDED, 2 WAY

1шт.

20

700712132

REPAIR KIT

KIT-HARNESS REPAIR

1шт.

21

700707003

REPAIR KIT

KIT-HARENSS REPAIR

1шт.
