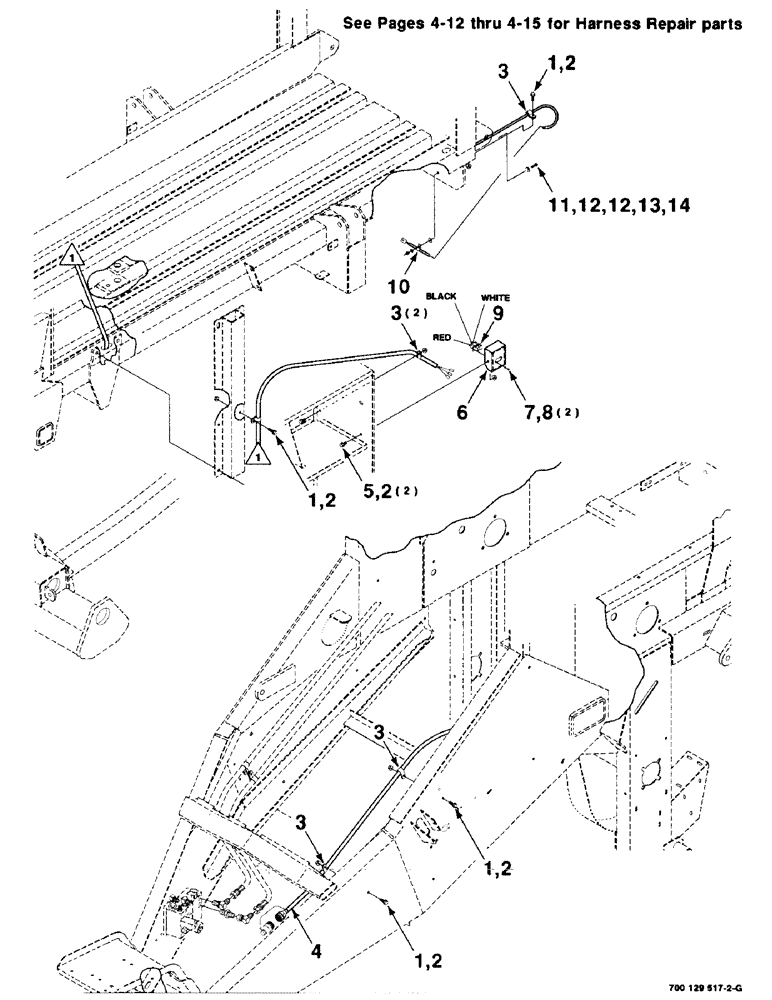

Запчасти Case IH 8575 (4-10) - BALE EJECTOR ELECTRICAL ASSEMBLY (06) - ELECTRICAL

1

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

4шт.

2

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

6шт.

3

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

5шт.

4

700714114

HARNESS

-CABLE, EJECTOR

1шт.

5

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

2шт.

6

700133172

SUPPORT

-SWITCH

1шт.

7

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

#6-32 X 3/8 CRPHMS GR 60M

2шт.

8

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

9

700714096

SWITCH

-ROCKER

1шт.

10

700711751

CLAMP

3/8 CLAMP

1шт.

11

51200165

SCREW,Hex, 1/4"-20 x 1", G5

1/4-20 X 1 C

1шт.

12

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

2шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

14

425-104

NUT,1/4"-20, Cl 5

1шт.
