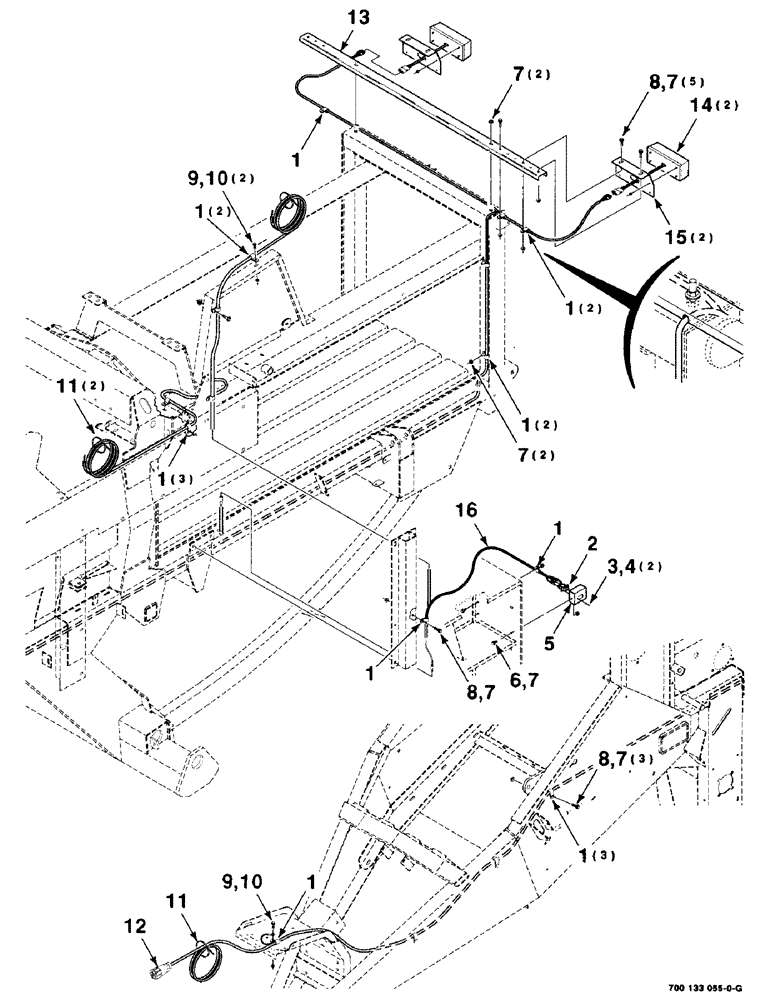

Запчасти Case IH 8575 (4-06) - LIGHTS ASSEMBLY, TAIL AND FLASHER (06) - ELECTRICAL

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

16шт.

2

700715143

SWITCH

-ROCKER

1шт.

3

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

#6-32 X 3/8 CRPHMS GR 60M

2шт.

4

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

5

700133171

SUPPORT

-SWITCH

1шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

1шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

14шт.

8

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

9шт.

9

121-108

BOLT,Hex Flg, 5/16"-18 x 1 1/4", Serr

5/16-18 X 1 HWHMS

3шт.

10

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

11

529070

CABLE TIE,368.3mm L

TIE-CABLE

3шт.

12

700715892

HARNESS

-LIGHTS

1шт.

13

700123423

CHANNEL

1шт.

14

700714721

LAMP

LIGHT-TAIL

2шт.

15

700133170

COVER PLATE

PLATE-LIGHT

2шт.

16

700715773

HARNESS

-WIRE

1шт.
