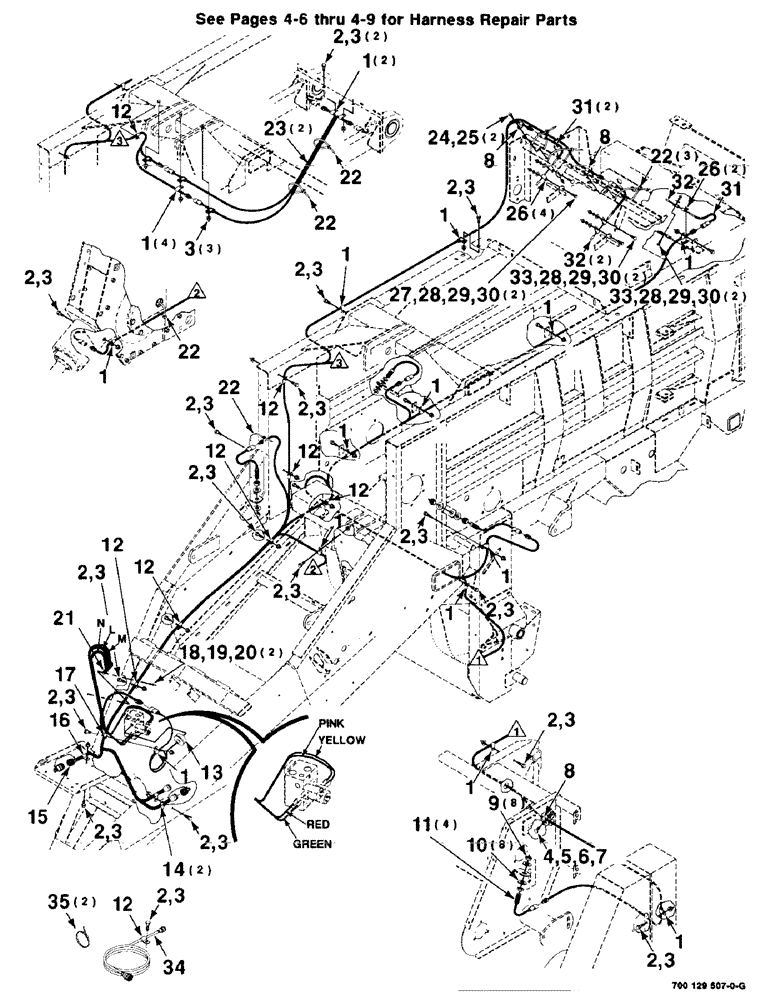

Запчасти Case IH 8575 (4-02) - ELECTRICAL WIRING AND SENSOR ASSEMBLY (06) - ELECTRICAL

1

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

19шт.

2

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

18шт.

3

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

21шт.

4

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

1шт.

5

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

425-105

NUT,5/16"-18, G5

1шт.

8

700708090

CLAMP

3/8 CLAMP

3шт.

9

425-1512

JAM NUT,Jam, 3/4"-10, G5

3/4-16 HJN GR2

8шт.

10

705566

WASHER

3/4 HARDENED PLAIN WASHER

8шт.

11

700706398

SENSOR

PTO SENSOR

4шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

8шт.

13

70013064

PRESSURE TRANSDUCER ASM

1шт.

14

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

2шт.

15

700713985

HARNESS

-WIRE, MAIN

1шт.

16

S95446

CLAMP,1 5/16", Insul, 1/2" Bolt

1-1/4 CLAMP

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

18

700710188

SCREW

#6-32 X 3/4 CRPHMS GR2 STLNS

2шт.

19

492-11006

LOCK WASHER,#6

Washer, Lock, #6

2шт.

20

225-14106

NUT,#6-32

2шт.

21

700706645

TERMINAL STRIP

STRIP

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

7шт.

23

700710751

HARNESS

CABLE

2шт.

24

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

2шт.

25

1703354

NUT

1/4-20 HFTLN GR/G

2шт.

26

751321

CLAMP

1/4 CLAMP

6шт.

27

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

28

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

6шт.

29

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

30

425-104

NUT,1/4"-20, Cl 5

6шт.

31

700113863

SENSOR

SWITCH ASSEMBLY

3шт.

32

700706340

MAGNET

3шт.

33

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

34

700706459

WIRE HARNESS

HARNESS-CABLE

1шт.

35

529070

CABLE TIE,368.3mm L

TIE-CABLE

2шт.
