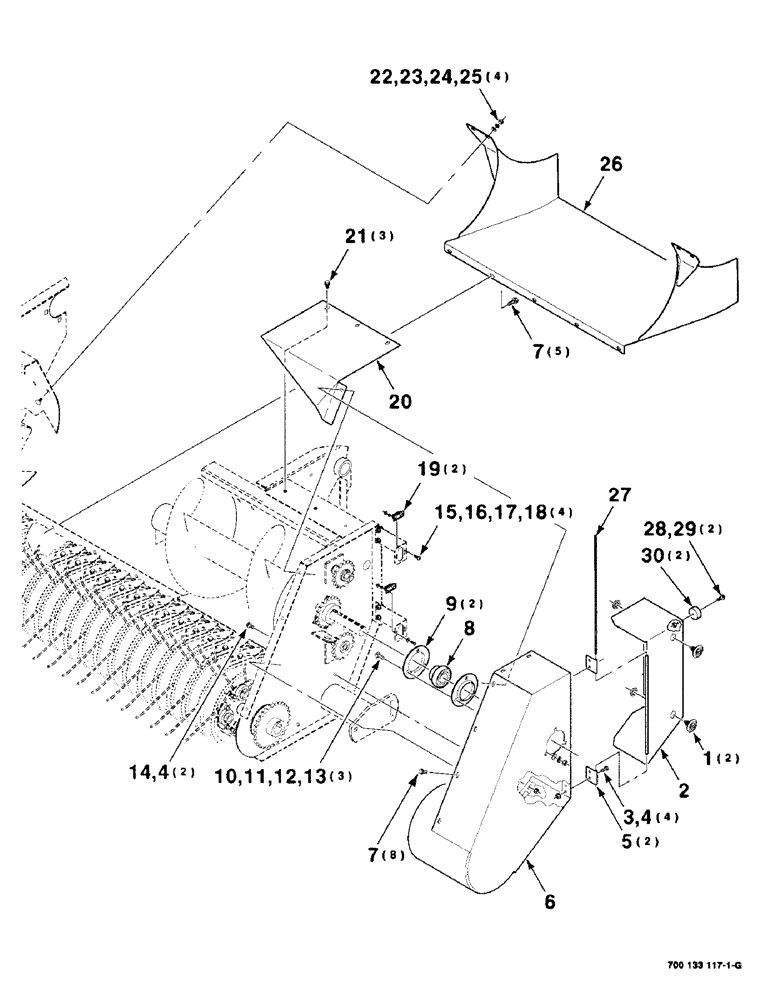

Запчасти Case IH 8575 (3-16) - PICKUP SHIELDS ASSEMBLY, LEFT Pickup

1

700714528

LATCH

-1/4 TURN

2шт.

2

700133120

SHIELD

-LEFT

1шт.

3

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

5/16-18 X 1/2 C

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

6шт.

5

700108658

SUPPORT

-HINGE

2шт.

6

700123788

PANEL

SHIELD-LEFT

1шт.

7

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

13шт.

8

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING-SPHERICAL

1шт.

9

T27207

FLANGED BEARING

FLANGE

2шт.

10

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

11

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

425-106

NUT,3/8"-16, Cl 5

3шт.

14

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

15

340-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

#10-24 X 1/2 CRPHMS GR2

4шт.

16

195-513

WASHER,#10

PLAIN WASHER #10

4шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

18

225-14110

NUT,#10-24

4шт.

19

700714529

SOCKET/RECEPTACLE

RECEPTACLE

2шт.

20

700133118

SHIELD

-PICKUP, LEFT

1шт.

21

121-133

SERRATED BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

3шт.

22

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

23

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

25

425-105

NUT,5/16"-18, G5

4шт.

26

700123801

CHUTE (DOWNWARD)

CHUTE WA

1шт.

27

6474316

PIN

-HINGE

1шт.

28

463-3126

#12-24 X 1/2 HWHMS

2шт.

29

1954816C1

LOCK NUT

#12-24 HCLN SPL

2шт.

30

700708648

BUMPER

2шт.
