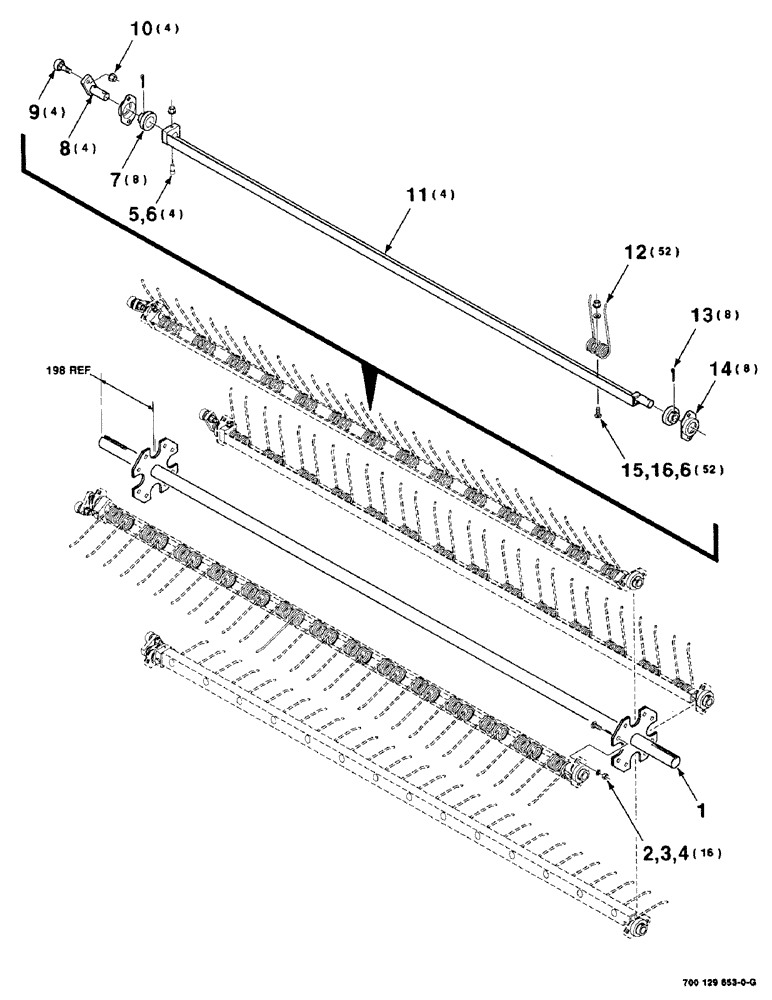

Запчасти Case IH 8575 (3-14) - PICKUP ROTOR ASSEMBLY Pickup

1

700108609

ROTOR

WA

1шт.

2

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

16шт.

3

492-11038

LOCK WASHER,3/8"

16шт.

4

425-106

NUT,3/8"-16, Cl 5

16шт.

5

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS SPL

4шт.

6

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

56шт.

7

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING-CYLINDRICAL

8шт.

8

700129657

CRANK

WA

4шт.

9

700705612

CAM FOLLOWER

BEARING-CAM, FOLLOWER

4шт.

10

700707867

NUT

1/2-20 HFTLN GR/G

4шт.

11

700129655

ANGLE

WA

4шт.

12

700714826

TORSION SPRING,Coiled, 2 Prong, 177mm L

-DOUBLE

52шт.

13

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

14

700108622

FLANGED BEARING

FLANGE-BEARING

8шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

52шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

52шт.
