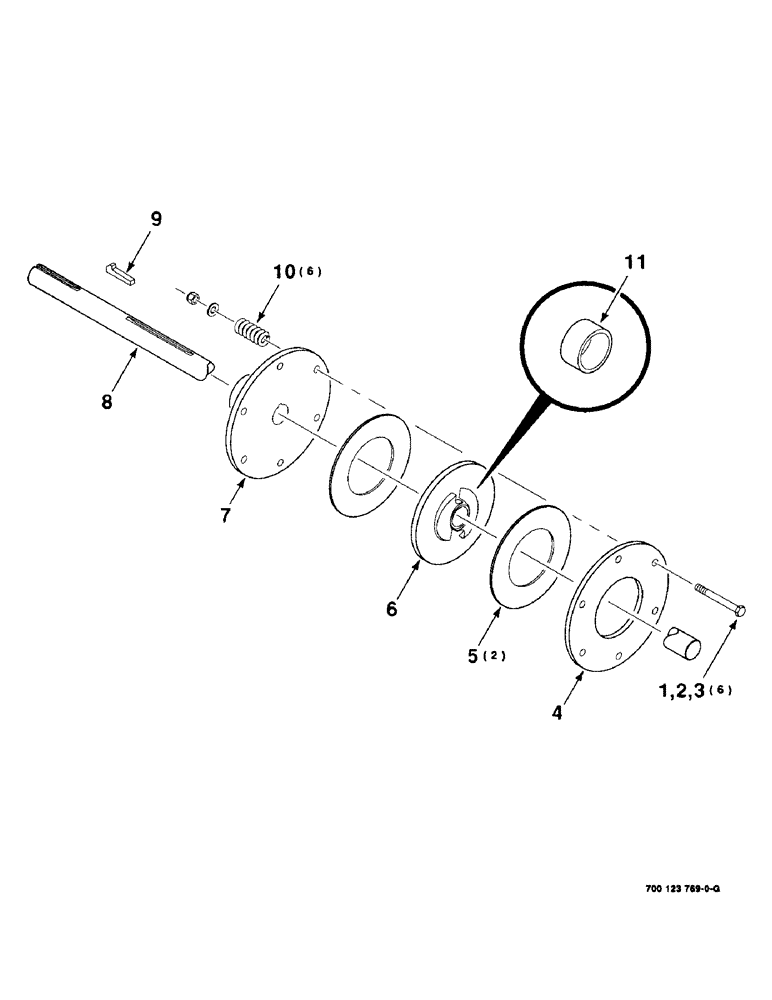

Запчасти Case IH 8575 (3-12) - PICKUP SLIP CLUTCH ASSEMBLY Pickup

1

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

6шт.

2

495-21044

WASHER,3/8"

6шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8-16 LHSN

6шт.

4

392464

LARGE PLATE

PLATE-PRESSURE

1шт.

5

700711025

CLUTCH PLATE,92mm ID x 161.92mm OD x 3.18mm Thk

DISC-FRICTION

2шт.

6

700108665

CLUTCH ASSEMBLY

(Includes Ref: 11)

1шт.

7

700108661

PLATE

WA-CLUTCH

1шт.

8

700123770

SHAFT

1шт.

9

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

10

58107

SPRING

-COMPRESSION

6шт.

11

852749

BRONZE BUSHING

BUSHING-BRONZE

1шт.
