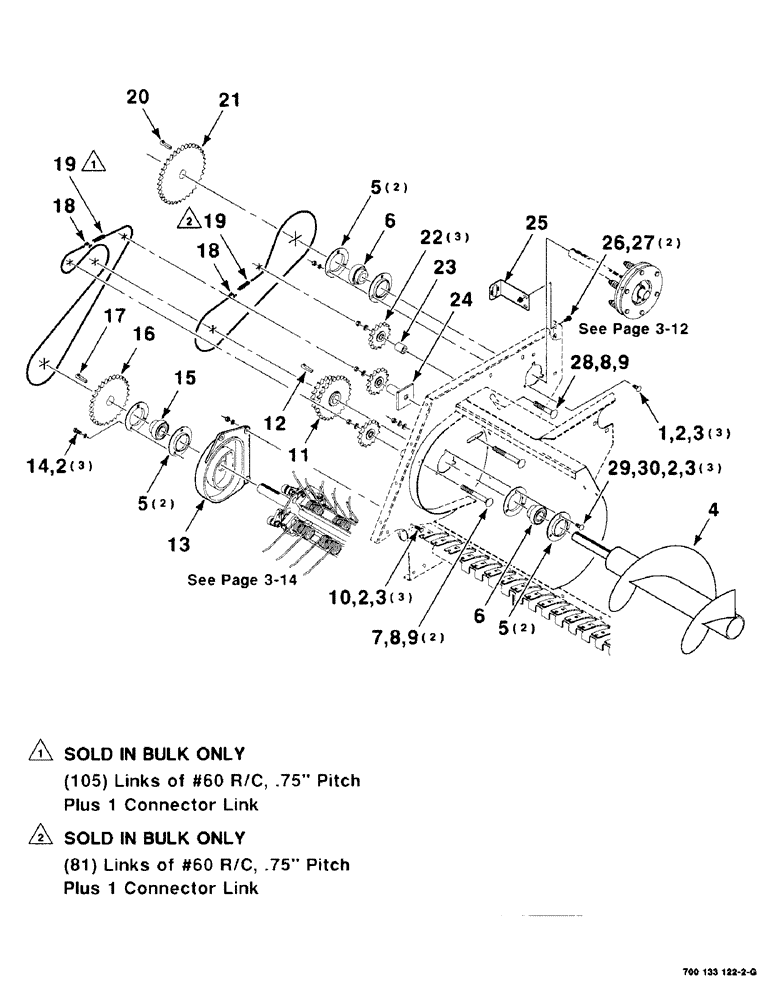

Запчасти Case IH 8575 (3-10) - PICKUP DRIVE AND AUGER ASSEMBLY, RIGHT Pickup

1

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

2

492-11038

LOCK WASHER,3/8"

12шт.

3

425-106

NUT,3/8"-16, Cl 5

9шт.

4

700123765

AUGER

WA-RIGHT

1шт.

5

T27207

FLANGED BEARING

FLANGE-BEARING

6шт.

6

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING-SPHERICAL

2шт.

7

433-1080

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 RHSNB

2шт.

8

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

9

425-1010

NUT,5/8"-11, G5

3шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

11

700123775

SPROCKET ASSY.

SPROCKET WA-DOUBLE, 20 and 26 TOOTH

1шт.

12

61978

KEY

1/4 X 2-1/2 GIB KEY

1шт.

13

700116125

HOUSING

TRACK-CAM

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

15

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

-SPHERICAL

1шт.

16

700123774

SPROCKET ASSY.

SPROCKET WA-60B30 TOOTH

1шт.

17

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 GIB KEY

1шт.

18

241-1416

LINK

-CONNECTOR, #60 R/C

2шт.

19

611362R91

CHAIN (AG)

CHAIN-ROLLER, #60 (10 FOOT BULK)

2шт.

20

61739

KEY

1/4 X 1/4 GIB KEY

1шт.

21

700108659

SPROCKET ASSY.

SPROCKET WA-60B36 TOOTH

1шт.

22

541857R92

SPROCKET,15T

-IDLER, 15 TOOTH

3шт.

23

6268494

SPACER

1шт.

24

700108636

SUPPORT

WA

1шт.

25

700133129

SUPPORT

-LATCH

1шт.

26

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

2шт.

28

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 X 3-1/2 RHSNB

1шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

30

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.
