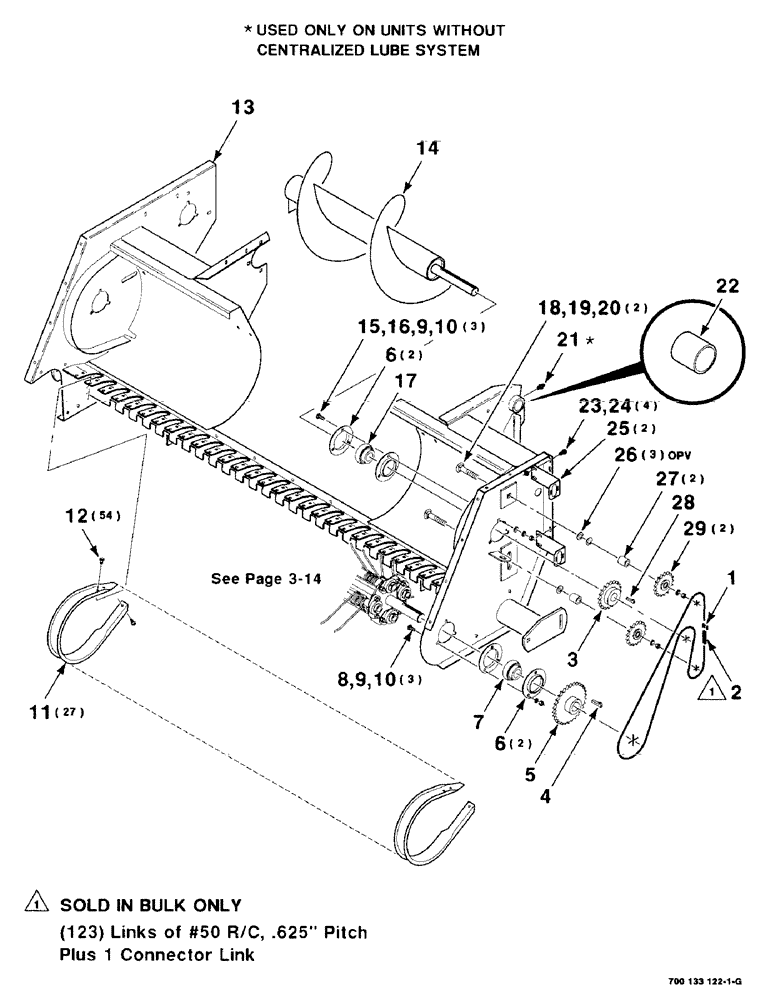

Запчасти Case IH 8575 (3-08) - PICKUP DRIVE AND AUGER ASSEMBLY, LEFT Pickup

1

47530

LINK, CONNECTING

LINK-CONNECTOR, #50 R/C

1шт.

2

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN-ROLLER, #50 (10 FOOT BULK)

1шт.

3

86439

SPROCKET ASSY.

SPROCKET WA-50B20 TOOTH

1шт.

4

Q3929

KEY,Gib, 5/16" Sq x 1 1/2"

5/16 X 1-1/2 GIB KEY

1шт.

5

700123773

SPROCKET ASSY.

SPROCKET WA-50B30 TOOTH

1шт.

6

T27207

FLANGED BEARING

FLANGE-BEARING

4шт.

7

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

-SPHERICAL

1шт.

8

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

3шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

425-106

NUT,3/8"-16, Cl 5

6шт.

11

700129658

TINE BAR

WRAPPER

27шт.

12

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

54шт.

13

700133123

SENDER UNIT

PICKUP WA (Includes Ref: 22)

1шт.

14

700123764

AUGER

WA-LEFT

1шт.

15

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

16

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.

17

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING-SPHERICAL

1шт.

18

433-1056

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

5/8-11 X 3-1/2 RHSNB

2шт.

19

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

20

425-1010

NUT,5/8"-11, G5

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 STRAIGHT ZERK-SPECIAL

1шт.

22

6186506

BUSHING,38.2mm ID x 44.58mm OD x 50.8mm L

-BRONZE

1шт.

23

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

4шт.

25

700133129

SUPPORT

-LATCH

2шт.

26

52175

BUSHING,25.48mm ID x 38.2mm OD x 3.17mm L

5/8 X 18 GAUGE NRMB

3шт.

27

6176655

BUSHING

SPACER

2шт.

28

Q3914

KEY,Gib, 1/4" Sq x 1 1/2"

1/4 X 1-1/2 GIB KEY

1шт.

29

211623C91

SPROCKET

-IDLER, 17 TOOTH

2шт.
