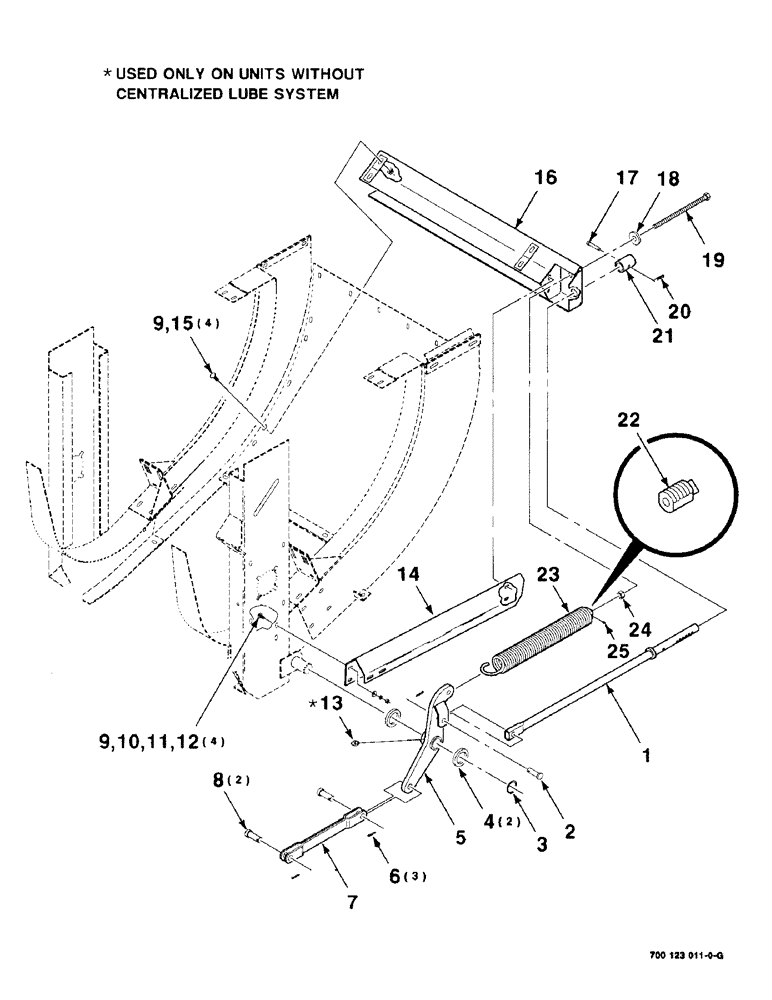

Запчасти Case IH 8575 (3-06) - PICKUP FLOTATION ASSEMBLY Pickup

1

700123446

LINK

1шт.

2

439-11032

HEADED PIN,15.88mm OD x 50.8mm L

5/8 X 2 CLEVIS PIN

1шт.

3

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

1шт.

4

740522

WASHER

1-1/2 X 10 GAUGE WRMB

2шт.

5

700123440

CRANK

1шт.

6

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

3шт.

7

700123444

LINK

1шт.

8

A35113

PIN

3/4 X 2 CLEVIS PIN

2шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

10

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

11

492-11038

LOCK WASHER,3/8"

4шт.

12

425-106

NUT,3/8"-16, Cl 5

4шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

1шт.

14

700123453

SUPPORT

1шт.

15

231-5146

FLANGE NUT,3/8"-16

4шт.

16

700123449

SUPPORT

1шт.

17

863381

CLIP,9.53mm OD x 50.8mm L

3/8 X 2 CLEVIS PIN

1шт.

18

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

1шт.

19

702282

BOLT,Hex, 5/8" - 11 x 10", Gr 5

5/8-11 X 10 FTB

1шт.

20

T54573

PIN

.120 HAIRPIN COTTER

1шт.

21

700113296

COLLAR

1шт.

22

6845879

PLUG

-SPRING

1шт.

23

6522700

SPRING

-ASSEMBLY (Includes Ref: 22)

1шт.

24

425-1010

NUT,5/8"-11, G5

1шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
