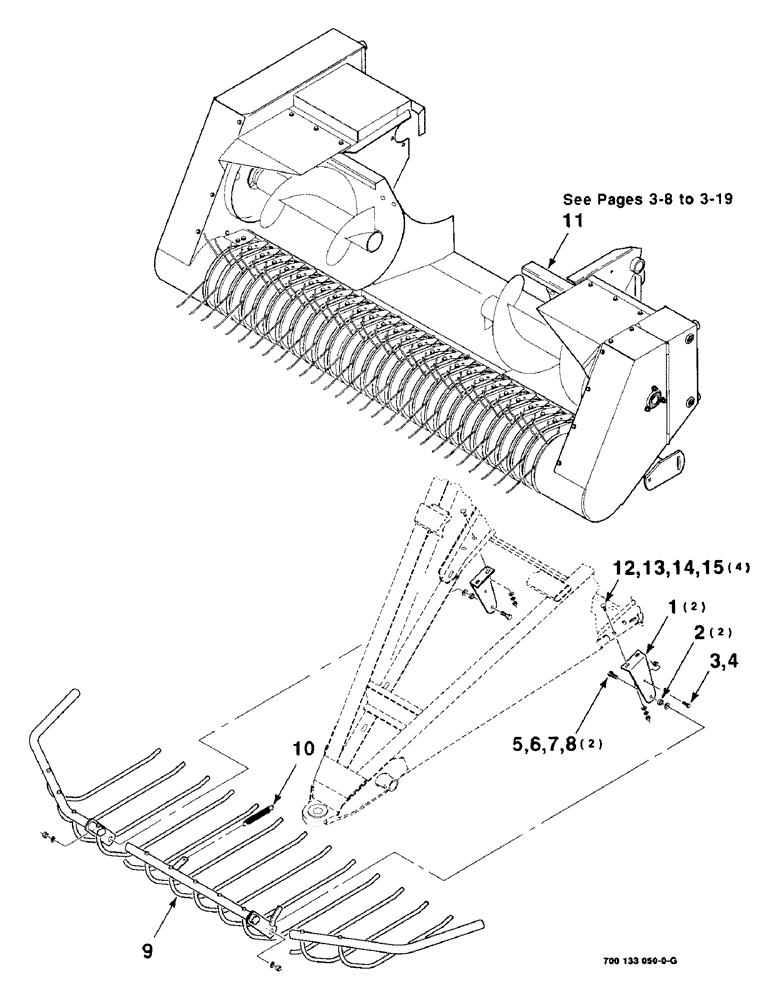

Запчасти Case IH 8575 (3-02) - PICKUP, COMPLETE AND WINDGUARD ASSEMBLY Pickup

1

700123787

SUPPORT

2шт.

2

700708272

BUSHING

SPACER

2шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

5

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

6

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

9

700123777

GUARD

WINDGUARD WA

1шт.

10

758441

SPRING

-EXTENSION

1шт.

11

700133117

ASSEMBLY

PICKUP ASSEMBLY

1шт.

12

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

13

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.

15

425-106

NUT,3/8"-16, Cl 5

4шт.
