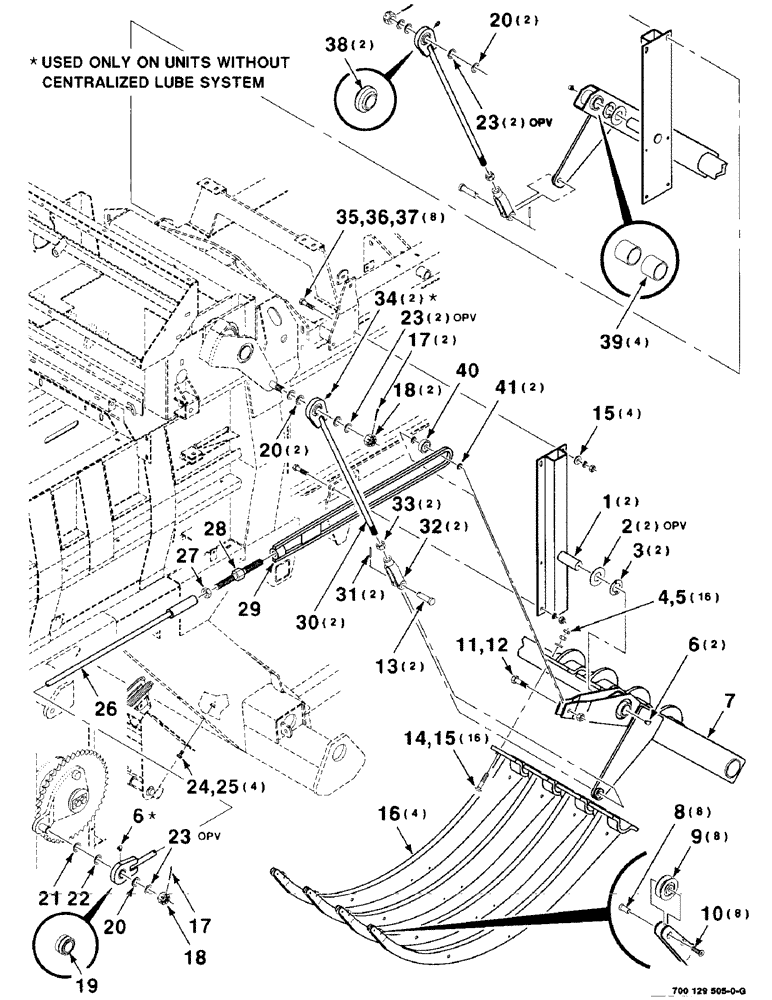

Запчасти Case IH 8575 (2-32) - NEEDLE ASSEMBLY Driveline

1

700123220

PIVOT

WA

2шт.

2

740522

WASHER

1-1/2 X 10 GAUGE WRMB

2шт.

3

Q3497

WASHER

-REPAIR

2шт.

4

329-148

NUT,Jam, 1/2"-13, G8

1/2-13 HJN GR8 BF

16шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

6

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

3шт.

7

700129675

SUPPORT

WA (Includes Ref: 39)

1шт.

8

866566

FASTENER,#10 - 32 x 9/16"

(Special)

8шт.

9

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING

8шт.

10

164-102

HEX SOC SCREW,FLAT, #10 - 32 x 1/2"

#10-32 X 1/2 HSFCHCS (Special)

8шт.

11

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

1шт.

12

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

13

A35113

PIN

3/4 X 2 CLEVIS PIN

2шт.

14

700710413

BOLT,Round, 1/2" - 13 x 2 1/2", Grade 8, BLK

1/2-13 X 2-1/2 RHSNB GR8 NP

16шт.

15

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

20шт.

16

700123233

NEEDLE

(Includes Ref: 8, 9 and 10)

4шт.

17

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

3шт.

18

25-1316

NUT,1"-14, G5

NUT, SLOTTED, 1"-14, G5

3шт.

19

D46620

BEARING,31.76 mm ID x 50.81 mm OD x 23.81 mm

-CYLINDRICAL

1шт.

20

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 GAUGE NRMB

5шт.

21

52324

BUSHING

1-1/4 X 10 GAUGE NRMB

1шт.

22

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 14 GAUGE NRMB

1шт.

23

52258

BUSHING

1 X 14 GAUGE NRMB

5шт.

24

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

4шт.

25

231-5146

FLANGE NUT,3/8"-16

4шт.

26

700129672

ROD

WA (Includes Ref: 19)

1шт.

27

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8-14 HJN GR2

1шт.

28

6530604

ROD

-ADJUSTING

1шт.

29

700113098

STRAP

WA-SAFETY

1шт.

30

700123225

ROD

-CONNECTING (Includes Ref: 38)

2шт.

31

19329R1

LOCK PIN,5/32" x 1 1/2", Slotted

Pin, 5/32" x 1 1/2", Slotted

2шт.

32

66332

FLOOR

2шт.

33

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

2шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

2шт.

35

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

36

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

37

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

38

700123203

BEARING, ROLLER, CYL,1" ID x 2" OD x 4.5 mm

BEARING-CYLINDRICAL

2шт.

39

700123261

BRONZE BUSHING

BUSHING-BRONZE

4шт.

40

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

1шт.

41

52233

BUSHING

5/8 X 14 GAUGE NRMB

2шт.
