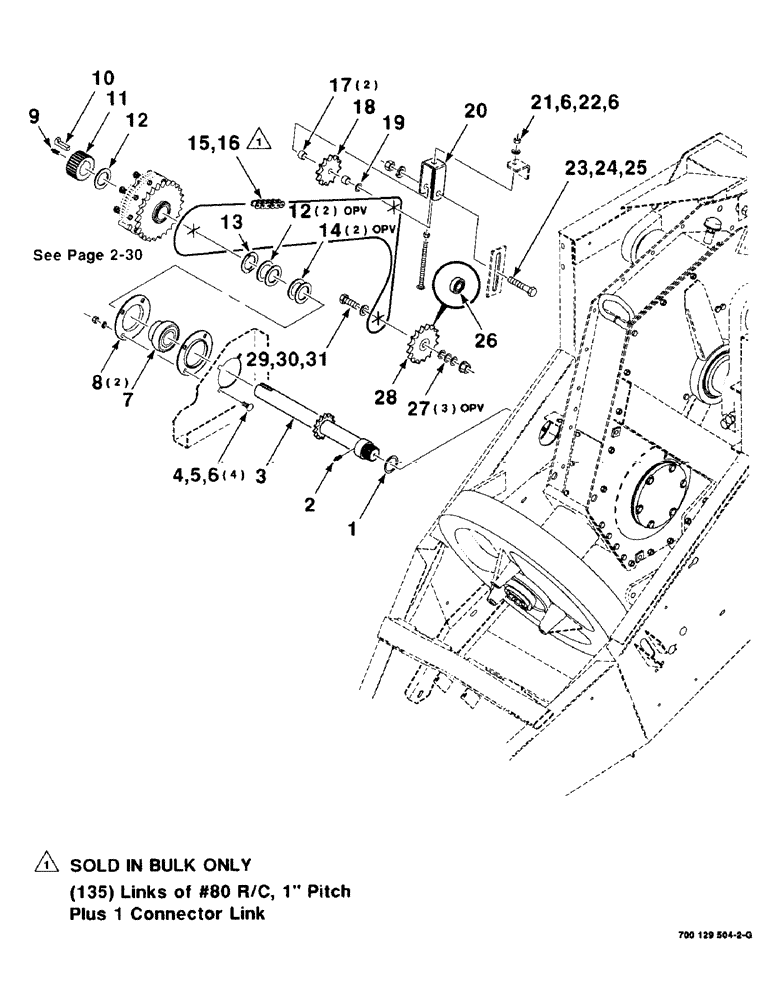

Запчасти Case IH 8575 (2-28) - AUXILIARY DRIVE ASSEMBLY, RIGHT Driveline

1

700710542

SEALING RING

1шт.

2

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

3

700123332

SHAFT

1шт.

4

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

6

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

7

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING

1шт.

8

714360

FLANGED BEARING

FLANGE

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK

1шт.

10

700706643

KEY

1/2 X 1/2 X 1-3/4 GIB KEY

1шт.

11

700112925

HUB

-SPLINES, 28 TOOTH

1шт.

12

740407

BRUSH, COMMUTATOR

2 X 10 GAUGE NRMB

3шт.

13

8052177

WASHER

1шт.

14

7852866

BUSHING

2 X 18 GAUGE NRMB

2шт.

15

654437R91

CHAIN (AG)

CHAIN-ROLLER, #80 (10 FOOT BULK)

1шт.

16

241-1418

SPRING CLIP

LINK-CONNECTOR, #80 R/C

1шт.

17

6823512

SPACER

2шт.

18

51200277

SPROCKET ASSY.

SPROCKET-IDLER

1шт.

19

52183

BUSHING

3/4 X 18 GAUGE NRMB

1шт.

20

700123330

CLEVIS

1шт.

21

7770878

BOLT,Sq Nk, 1/2" - 13 x 7", Gr 5, Full Thd

1/2-13 X 7 FT RHSNB

1шт.

22

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

23

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

3/4-10 X 4 C

1шт.

24

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

25

425-1012

NUT,3/4"-10, G5

3/4-10 H

1шт.

26

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

BEARING

1шт.

27

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

3шт.

28

700123336

SPROCKET ASSY.

SPROCKET ASM (Includes Ref: 26)

1шт.

29

413-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

1шт.

30

705566

WASHER

3/4 HARDENED PLAIN WASHER

1шт.

31

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.
