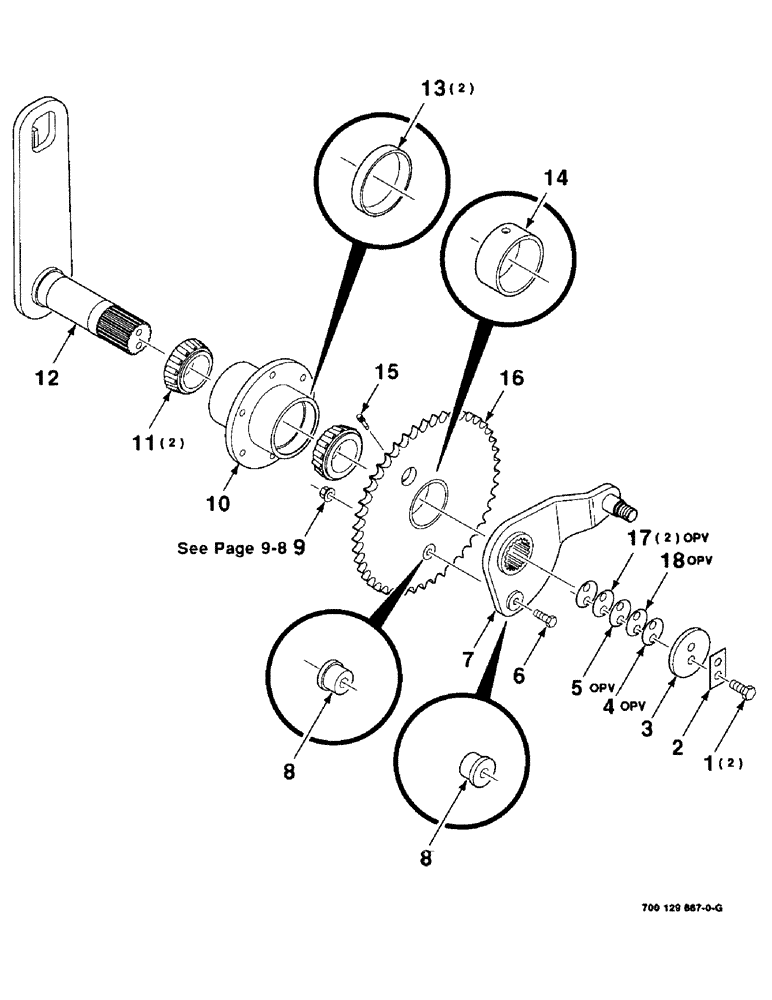

Запчасти Case IH 8575 (2-26) - SHAFT AND SPROCKET ASSEMBLY Driveline

1

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

2

700113045

LOCKING PLATE

TAB-LOCK

1шт.

3

700113044

RETAINING PLATE

CAP-RETAINER

1шт.

4

700707993

SHIM

-.020

1шт.

5

700706060

SHIM

-.005

1шт.

6

426-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

1шт.

7

700129669

HUB

(Includes Ref: 8 & 17)

1шт.

8

6526081

BUSHING

SLEEVE-SHEAR BOLT

2шт.

9

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

10

700123311

HUB

ASSEMBLY (Includes Ref: 13)

1шт.

11

700710545

ROLLER BEARING,68.26mm ID x 22mm W

CONE-BEARING

2шт.

12

700123306

ARM

WA

1шт.

13

29214H

BEARING CUP,110mm OD x 18.82mm W

CUP-BEARING

2шт.

14

700123389

BRONZE BUSHING

BUSHING - BRONZE

1шт.

15

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

1шт.

16

700129671

SPROCKET ASSY.

SPROCKET (Includes Ref: 8 & 14)

1шт.

17

700706059

SHIM

-.003

2шт.

18

700706061

SHIM

-.010

1шт.
