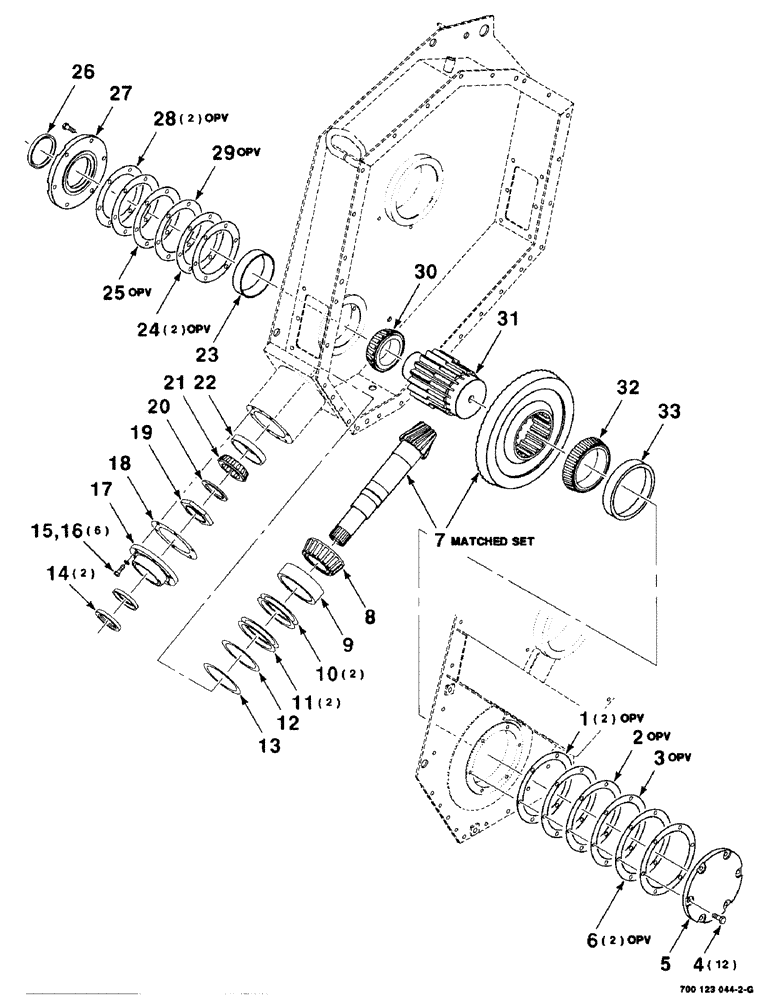

Запчасти Case IH 8575 (2-22) - GEARBOX ASSEMBLY, (CONT) Driveline

1

700710360

SHIM

-LEFT, 0.51 / .020

2шт.

2

700710359

SHIM

-LEFT, 0.25 / .010

1шт.

3

700710358

SHIM

-LEFT, 0.13 / .005

1шт.

4

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

12шт.

5

700123102

CAP

-LEFT

1шт.

6

700710357

SHIM

-LEFT, 0.08 / .003

2шт.

7

700710353

GEAR-SET

RING GEAR AND PINION

1шт.

8

921684C1

BEARING ASSY,2.9528" ID x 5.7087" OD x 2.0079"

CONE-BEARING

1шт.

9

921683C1

BEARING CUP,5.7087" OD x 1.6535"

CUP-BEARING

1шт.

10

700710389

SHIM

-PINION, INPUT 0.51 / .020

2шт.

11

700710386

SHIM

-PINION, INPUT 0.08 / .003

2шт.

12

700710387

SHIM

-PINION, INPUT 0.13 / .005

1шт.

13

700710388

SHIM

-PINION, INPUT 0.25 / .010

1шт.

14

700710382

SEAL

-OIL

2шт.

15

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Hex, M10 x 30; 8.8

6шт.

16

700708367

WASHER

10 L

6шт.

17

700123101

CAP

-FRONT

1шт.

18

700710371

GASKET

-FRONT CAP

1шт.

19

700710410

NUT

-STAKE

1шт.

20

700710383

WASHER

-SPECIAL

1шт.

21

ST2175

BEARING, CONE,79.25mm ID x 19.05mm W

CONE-BEARING

1шт.

22

700710378

BEARING, CUP

CUP-BEARING

1шт.

23

A50529

BEARING CUP,147.03mm OD x 32.5mm W

CUP-BEARING

1шт.

24

700710364

SHIM

-RIGHT 0.51 / .020

1шт.

25

700710362

SHIM

-RIGHT 0.13 / .005

1шт.

26

700701720

SEAL

-OIL

1шт.

27

700123103

CAP

-RIGHT

2шт.

28

700710361

SHIM

-RIGHT 0.08 / .003

1шт.

29

700710363

SHIM

-RIGHT 0.25 / .010

1шт.

30

A50532

ROLLER BEARING,89.97mm ID x 40.2mm W

CONE-BEARING

1шт.

31

700710352

PINION

1шт.

32

1-1357

ROLLER BEARING,133.35mm ID x 39.69mm W

CONE-BEARING

1шт.

33

1-1358

BEARING CUP,190.5mm OD x 33.34mm W

CUP-BEARING

1шт.
