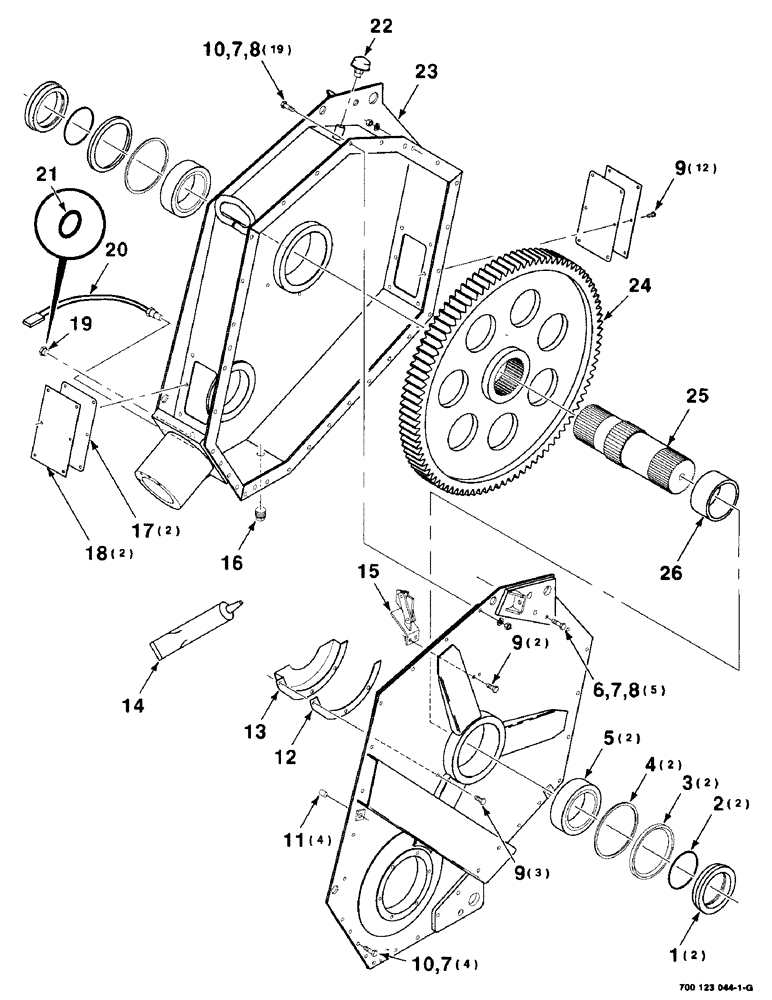

Запчасти Case IH 8575 (2-20) - GEARBOX ASSEMBLY, 700123044 GEARBOX ASSEMBLY COMPLETE, INCLUDES PAGES 2-20 THRU 2-23 Driveline

700123044

GEARBOX ASSY

GEARBOX ASSEMBLY COMPLETE

1шт.

1

700123104

SPACER

-OUTPUT

2шт.

2

737221

O-RING

O-RING

2шт.

3

700706047

SEAL

-OIL

2шт.

4

700710385

SNAP RING

RING-RETAINING

2шт.

5

700710381

SPHERICAL BEARING,120 mm ID x 180 mm OD x 46 mm

BEARING-ROLLER, SPHERICAL

2шт.

6

700708353

SCREW

M12 X 1.75 X 40 C

5шт.

7

892-10012

LOCK WASHER,M12

28шт.

8

825-1112

NUT,M12, Cl 8

M12 X 1.75 H

24шт.

9

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

17шт.

10

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

23шт.

11

700709990

PIN

5/8 X 1 DOWEL PIN

4шт.

12

700706080

GASKET

1шт.

13

700123106

FLANGE

WA

1шт.

14

700707823

SEALANT

-305 ml / 10.3 OZ

1шт.

15

700123110

SCRAPER

WA-LEFT

1шт.

16

221-846

PLUG,Hex Soc, 1"-11 1/2

-PIPE

1шт.

17

700710372

GASKET

2шт.

18

700123105

COVER

2шт.

19

700701293

PLUG

O-RING PLUG (Includes Ref: 21)

1шт.

20

700706142

THERMOSTAT

ASSEMBLY

1шт.

21

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

22

8799280

FILTER

BREATHER

1шт.

23

700123045

HOUSING

GEARBOX HSG ASM (Includes Lid)

1шт.

24

700710354

GEAR

-OUTPUT

1шт.

25

700123098

SHAFT

-OUTPUT

1шт.

26

700123099

SPACER

-LEFT

1шт.
