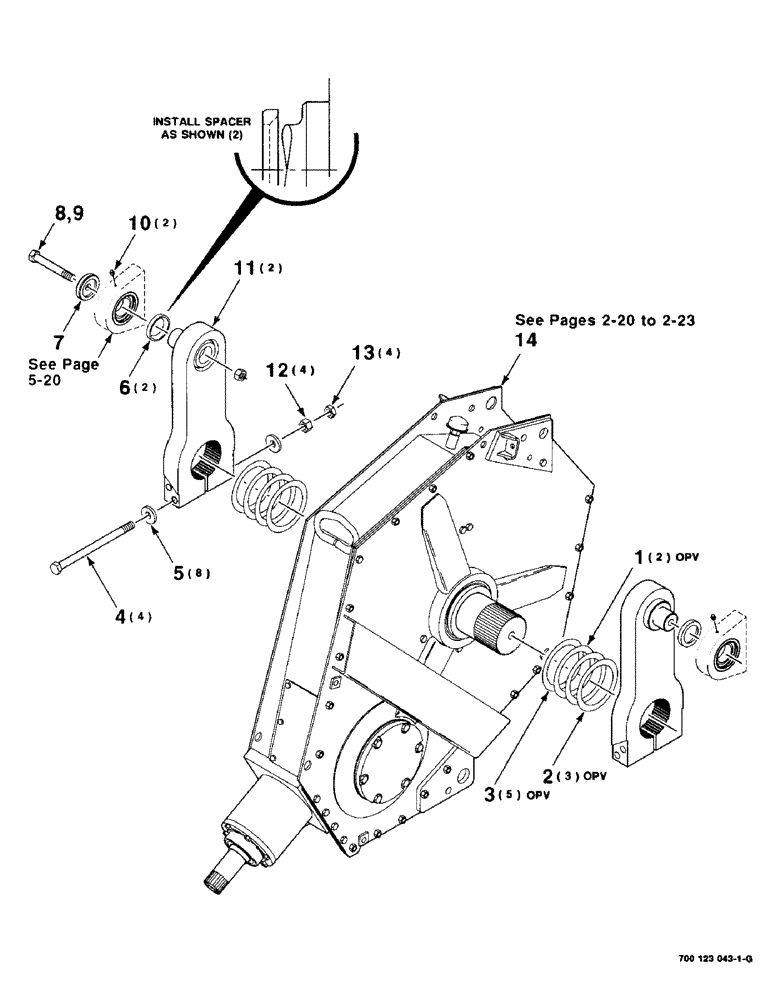

Запчасти Case IH 8575 (2-18) - GEARBOX AND CRANK ARM ASSEMBLY Driveline

1

700710391

SHIM

-0.64/.025

2шт.

2

700710390

SHIM

-0.25/.010

3шт.

3

700710393

SHIM

-1.27/.050

5шт.

4

426-12160

BOLT,Hex, 3/4" - 10 x 10", Gr 8

3/4-10 X 10 B GR8 NP

4шт.

5

705566

WASHER

3/4 HARDENED PLAIN WASHER

8шт.

6

700123119

SPACER

-BEARING, CRANK ARM

2шт.

7

700123122

WASHER

-SPECIAL

1шт.

8

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

1шт.

9

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

10

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

11

700123114

ARM

WA-CRANK

2шт.

12

329-1012

NUT,3/4"-10, G8

4шт.

13

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HJN GR2

4шт.

14

700123044

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.
