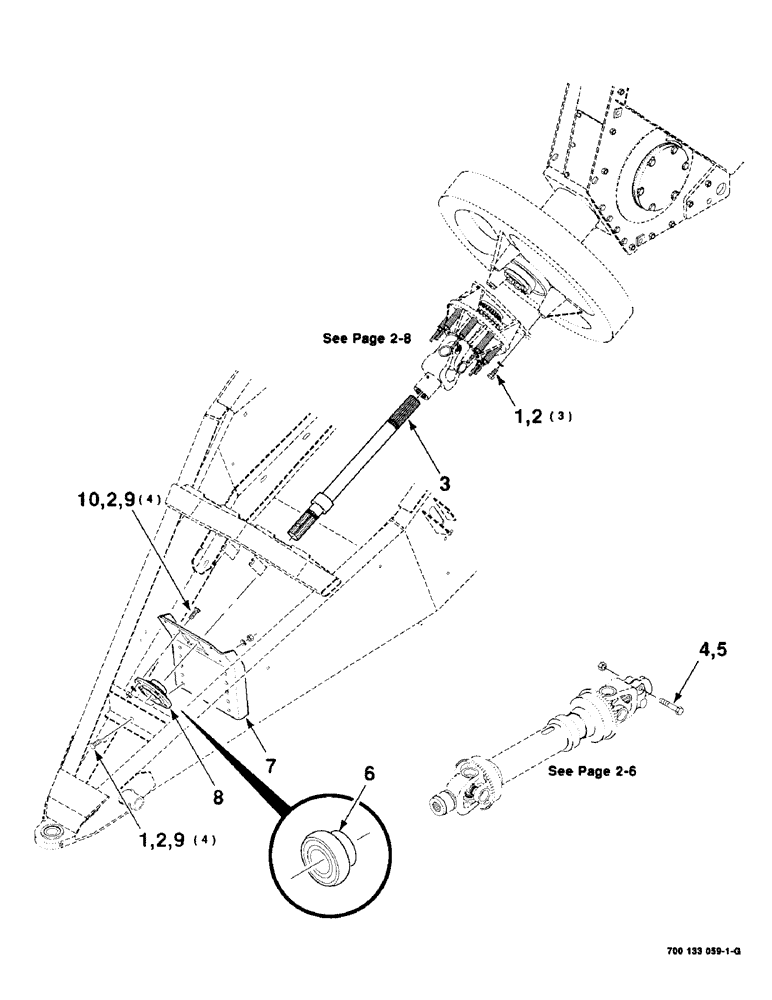

Запчасти Case IH 8575 (2-04) - DRIVE LINE AND MOUNTING ASSEMBLY Driveline

1

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

7шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

11шт.

3

700123820

SHAFT

1шт.

4

413-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

5

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

6

668719R92

BEARING ASSY,1.7505" ID x 3.346" OD x 1.1875" Thk

BEARING - SPHERICAL

1шт.

7

700113022

SUPPORT

1шт.

8

700124004

BEARING ASSY,44.45 mm ID x 85 mm OD x 29 mm

BEARING ASSEMBLY (Includes Ref: 6)

1шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

10

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.
