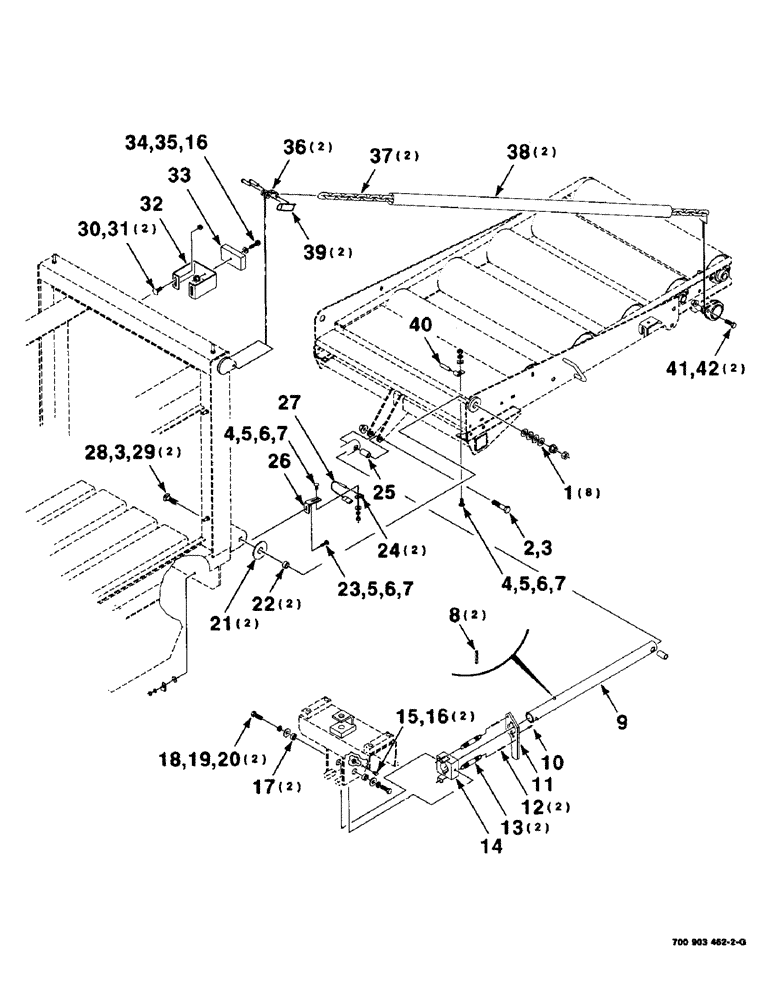

Запчасти Case IH 8575 (9-14) - BALE ROLLER CHUTE KIT, (CONT) Decals & Attachments

1

700712616

SPRING WASHER

-SPRING

8шт.

2

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8-11 X 3-1/4 C

1шт.

3

232-53110

FLANGE NUT,Flg, 5/8"-11

5/8-11 HFTLN GR/G

3шт.

4

434-412

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

2шт.

5

495-21031

WASHER,1/4"

1/4 WIDE PLAIN WASHER

3шт.

6

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

7

425-104

NUT,1/4"-20, Cl 5

3шт.

8

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

Pin, 5/16" x 2 1/4", Slotted

2шт.

9

700129753

TUBE,41.28 mm OD, 705 mm Length

ASSEMBLY-PUSH (Includes Ref: 8)

1шт.

10

38-11608

LOCK PIN,1/4" x 1/2", Slotted

PIN, LOCK, 1/4" x 1/2", Slotted

1шт.

11

700129768

HANDLE

ASSEMBLY

1шт.

12

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

13

700709843

SPRING

-EXTENSION

2шт.

14

700129755

TRUNNION

TRUNION WA

1шт.

15

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

16

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

3шт.

17

378604

SPACER

2шт.

18

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

20

700711557

WASHER

1/2 HARDENED WIDE PLAIN WASHER

2шт.

21

700714065

WASHER

-BRASS

2шт.

22

6484257

SPACER

BUSHING

2шт.

23

434-416

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1", Gr 5

1/4-20 X 1 RHSNB

1шт.

24

751321

CLAMP

1/4 CLAMP

2шт.

25

6475842

SPACER

1шт.

26

700129761

BRACKET

ANGLE-SWITCH

1шт.

27

700113863

SENSOR

SWITCH ASM

1шт.

28

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2-1/2 RHSNB

2шт.

29

425-1010

NUT,5/8"-11, G5

2шт.

30

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

700129682

SUPPORT

-PAD

1шт.

33

700707584

PAD

-NEOPRENE

1шт.

34

163-41

SCREW,Sl Hex Wshr Hd, 5/16" - 18 x 1 1/4"

5/16-18 X 1-1/4 HWHMS

1шт.

35

495-61034

WASHER,0.34" ID x 0.88" OD x 0.06" Thk

5/16 WIDE PLAIN WASHER

1шт.

36

ZJC606M

HOOK

LINK-MID (Pins Included)

2шт.

37

ZJC671413

CHAIN (AG)

CHAIN

2шт.

38

700714150

HOSE PROTECTION,38.10 mm ID x 1400.00 mm

Sleeve

2шт.

39

700714066

PIN

-SAFETY

2шт.

40

700706340

MAGNET

1шт.

41

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

42

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

2шт.
