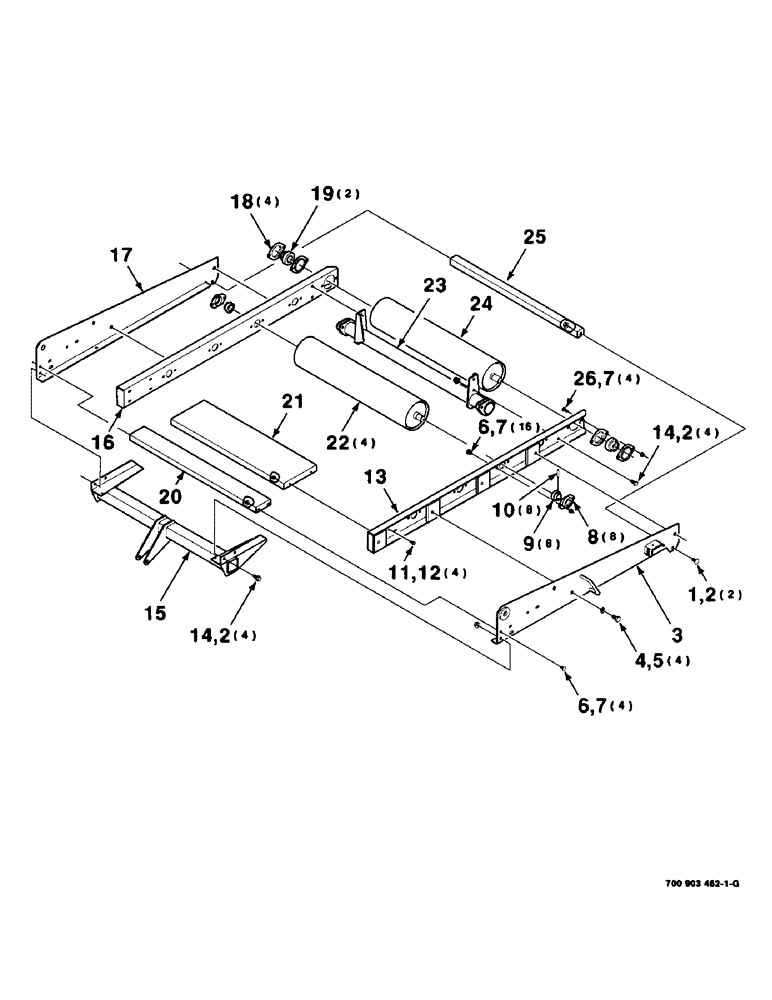

Запчасти Case IH 8575 (9-12) - BALE ROLLER CHUTE KIT, HK40831 BALE ROLLER CHUTE KIT COMPLETE, INCLUDES PAGES 9-12 THRU 9-15 Decals & Attachments

HK40831

CHUTE (DOWNWARD)

BALE ROLLER CHUTE KIT COMPLETE (Includes Figures: 9-12 Thru 9-15)

1шт.

1

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

2

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

10шт.

3

700129744

ANGLE

WA-LEFT

1шт.

4

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

5/8-11 X 1 C

4шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

6

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

20шт.

7

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

24шт.

8

700108622

FLANGED BEARING

FLANGE

8шт.

9

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING-CYLINDRICAL

8шт.

10

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

PIN, 1/4" x 1 1/2", Slotted

8шт.

11

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

12

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN GR/G

4шт.

13

700129724

CHANNEL

WA-LEFT

1шт.

14

121-425

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8

1/2-13 X 1 HFS GR8

8шт.

15

700129717

SUPPORT

WA

1шт.

16

700129756

CHANNEL

WA-RIGHT

1шт.

17

700129745

ANGLE

WA-RIGHT

1шт.

18

581469R1

FLANGE,Bearing

4шт.

19

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

-SPHERICAL

2шт.

20

700129737

SHIELD

1шт.

21

700129736

SHIELD

1шт.

22

700129714

TUBE,816 mm Length

WA-FRONT

4шт.

23

700129728

SUPPORT

WA

1шт.

24

700129710

TUBE,816 mm Length

WA-REAR

1шт.

25

700129739

CHANNEL

-REAR

1шт.

26

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

4шт.
