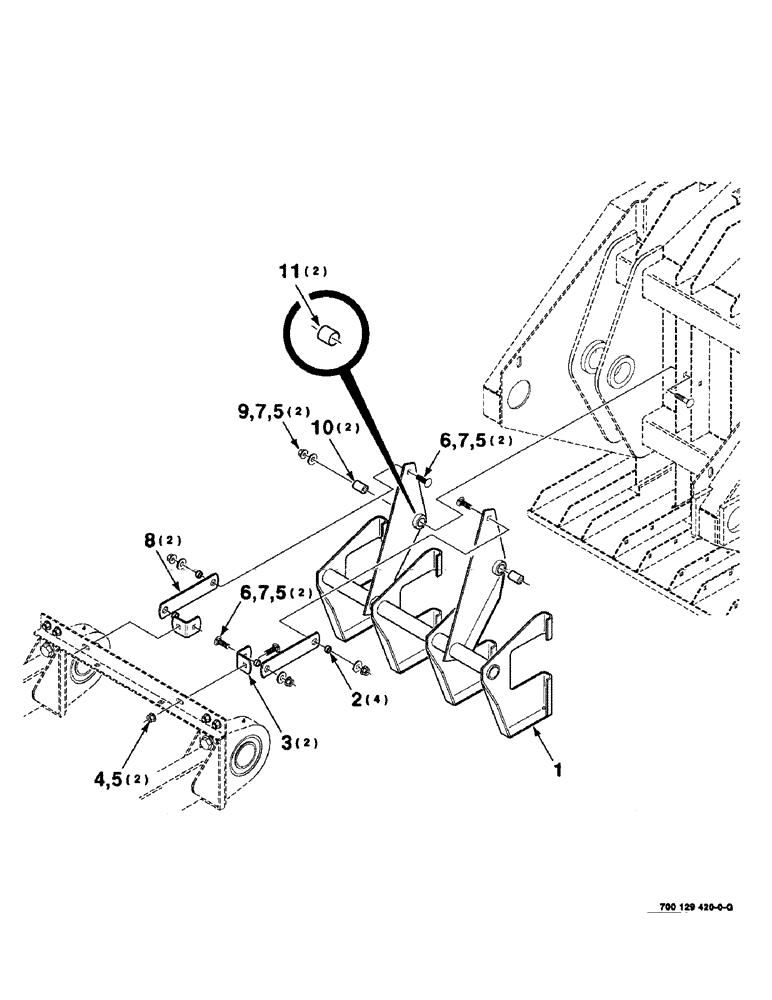

Запчасти Case IH 8575 (9-10) - SLOT CLEANER KIT, 700129421 SLOT CLEANER KIT COMPLETE Decals & Attachments

700129421

KIT

SLOT CLEANER KIT COMPLETE

1шт.

1

700129422

CLEANER

WA (Includes Ref: 11)

1шт.

2

6232946

BUSHING

4шт.

3

700122588

ANGLE

2шт.

4

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

2шт.

5

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

8шт.

6

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

7

495-21044

WASHER,3/8"

6шт.

8

700129431

STRAP

2шт.

9

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1 3/4 RHSNB

2шт.

10

6518302

SPACER

BUSHING

2шт.

11

740787

BRONZE BUSHING

BUSHING

2шт.
