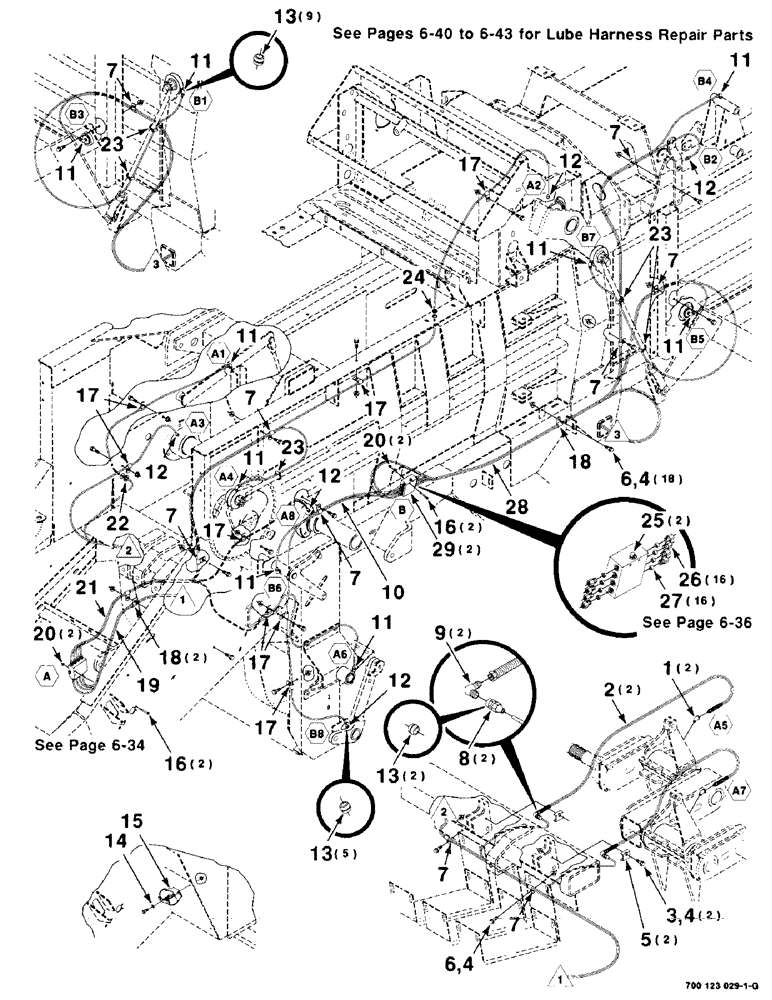

Запчасти Case IH 8575 (6-32) - LUBE ASSEMBLY, CENTRALIZED (14) - BALE CHAMBER

1

219-81

ELBOW,45 Degree, 1/8"-27

1/8-27 X 45 DEGREE STREET ELL

2шт.

2

700706798

FLEXIBLE HOSE

HOSE ASSEMBLY

2шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GRG

21шт.

5

700113671

CLAMP

-LINE

2шт.

6

121-226

SERRATED BOLT,Hex, 3/8" - 16 x 1"

19шт.

7

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

9шт.

8

700706840

HYD CONNECTOR

CONNECTOR-FEMALE

2шт.

9

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

90 DEGREE ELBOW-MALE

2шт.

10

700123990

HARNESS

-LUBE, PICKUP

1шт.

11

700706682

FRONT AXLE

1/8-27 X 90 DEGREE ELBOW

9шт.

12

219-300

ROD, CONNECTING

CONNECTOR-MALE

5шт.

13

30774V

FERRULE

SLEEVE-BALL

16шт.

14

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

15

700707011

HOLDER

-GREASE GUN

1шт.

16

7701444

SCREW

#10-32 X 1-3/4 HWHMS

4шт.

17

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

1/4 ID CLAMP

8шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

3шт.

19

700123987

HARNESS

-LUBE, FRONT

1шт.

20

225-14210

NUT,#10-32

4шт.

21

700123988

HARNESS

-LUBE, LEFT

1шт.

22

248-2376

GROMMET,5/8" ID x 1 1/4" Groove Dia, Str Cut

1шт.

23

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

5шт.

24

248-13101

GROMMET,1/2" ID x 13/16" Groove Dia, Str Cut

1шт.

25

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1/8-27 X 90 DEGREE ZERK

2шт.

26

700706684

HYD CONNECTOR

NUT-COMPRESSION

16шт.

27

700706678

FERRULE

16шт.

28

700123989

HARNESS

-LUBE, REAR

1шт.

29

700706837

MANIFOLD

VALVE BLOCK-LUBE

2шт.
