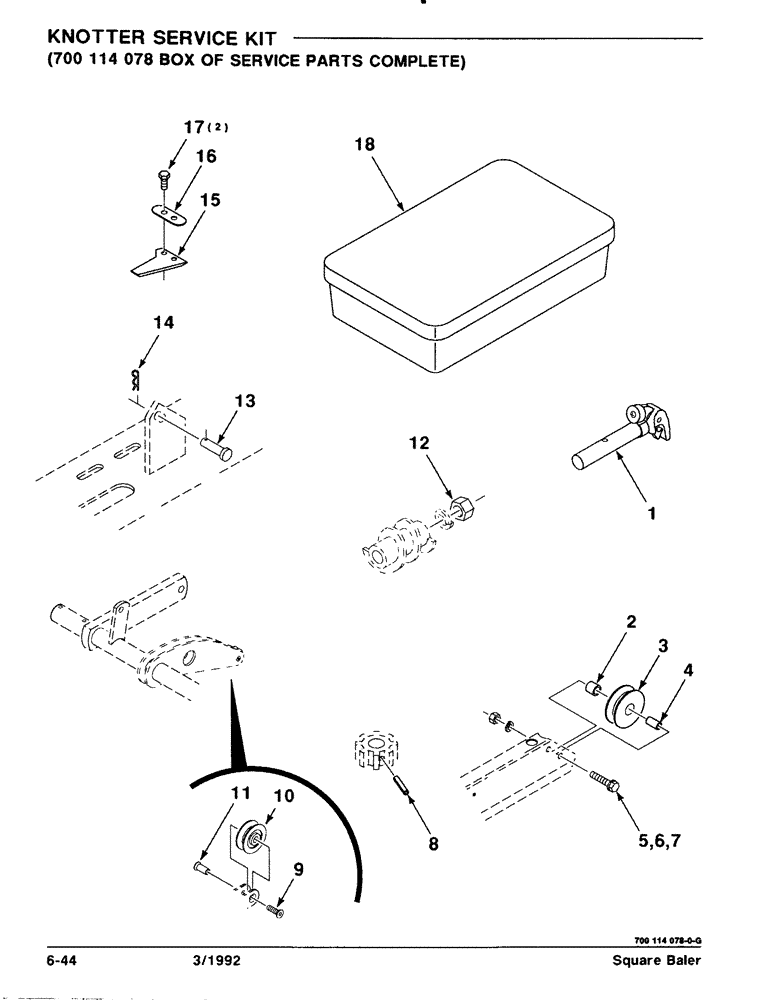

Запчасти Case IH 8570 (6-44) - KNOTTER SERVICE KIT, 700114078 BOX OF SERVICE PARTS COMPLETE (14) - BALE CHAMBER

1

700700968

KNOTTER

BILL HOOK ASSEMBLY

1шт.

2

7849656

SLEEVE

- ROLLER

1шт.

3

6529945

ROLLER

1шт.

4

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

BUSHING - ROLLER

1шт.

5

771345

SCREW,Hex, #10 - 24 x 1"

#10-24 X 1 HWHMS

1шт.

6

705004

LOCK WASHER

#10 L

1шт.

7

NLS

NO LONGER SERVICED

10-24H GR2

1шт.

8

863761

PIN, GROOVED

3/16 X 7/8 GROOVE PIN

1шт.

9

8701476

HEX SOC SCREW,Flat Hd, CSK, #10 - 32 x 1/2"

#10-32 X 1/2 HSFCHCS

1шт.

10

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

BEARING - ROLLER

1шт.

11

866566

FASTENER,#10 - 32 x 9/16"

#10-32 FASTENER - SPECIAL

1шт.

12

704304

NUT

3/8-24 HEX NUT

1шт.

13

063586

CLEVIS PIN

3/8 X 1-1/8 CLEVIS PIN

1шт.

14

S120261

PIN

.149 WIRE HAIRPIN COTTER

1шт.

15

49783

KNIFE

- TWINE

1шт.

16

6613624

WASHER, LOCK

LOCK - TAB

1шт.

17

8701625

SCREW,Hex, #10 - 32 x 1/2"

#10-32 X 1/2 HHMS

2шт.

18

700707474

BOX

- PLASTIC

1шт.
