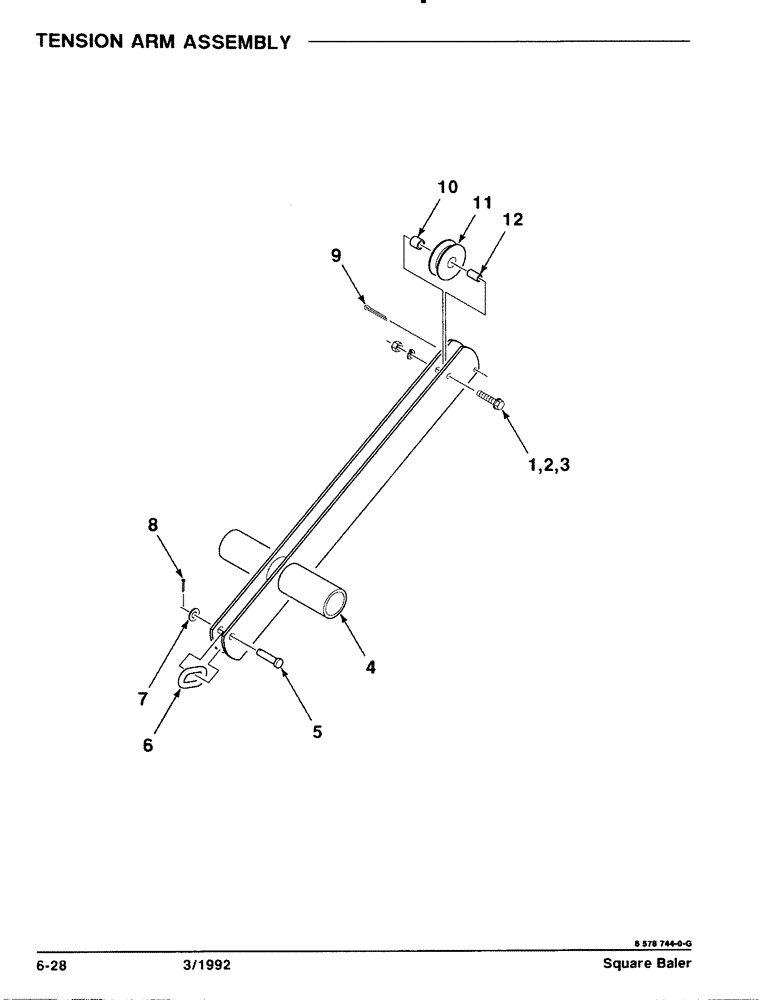

Запчасти Case IH 8570 (6-28) - TENSION ARM ASSEMBLY (14) - BALE CHAMBER

1

771345

SCREW,Hex, #10 - 24 x 1"

#10-24 X 1 HWHMS

1шт.

2

705004

LOCK WASHER

#10 L

1шт.

3

NLS

NO LONGER SERVICED

10-24 H GR2

1шт.

4

6578751

ARM

WA - TENSION

1шт.

5

9967191

PIN

1/4 X 1 CLP

1шт.

6

89987

CHAIN (AG)

LINK - CHAIN

1шт.

7

705707

WASHER,1/4", SAE

1/4 NARROW PLAIN WASHER

1шт.

8

62018

PIN

1/16 X 1/2 COTTER PIN

1шт.

9

62117

PIN

1/8 X 1-1/4 COTTER PIN

1шт.

10

7849656

SLEEVE

- ROLLER

1шт.

11

6529945

ROLLER

- NEEDLE

1шт.

12

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

BUSHING - ROLLER

1шт.
