(6-22) - LUBE PUMP AND LINE ASSEMBLY

Запчасти Case IH 8570 (6-22) - LUBE PUMP AND LINE ASSEMBLY (14) - BALE CHAMBER

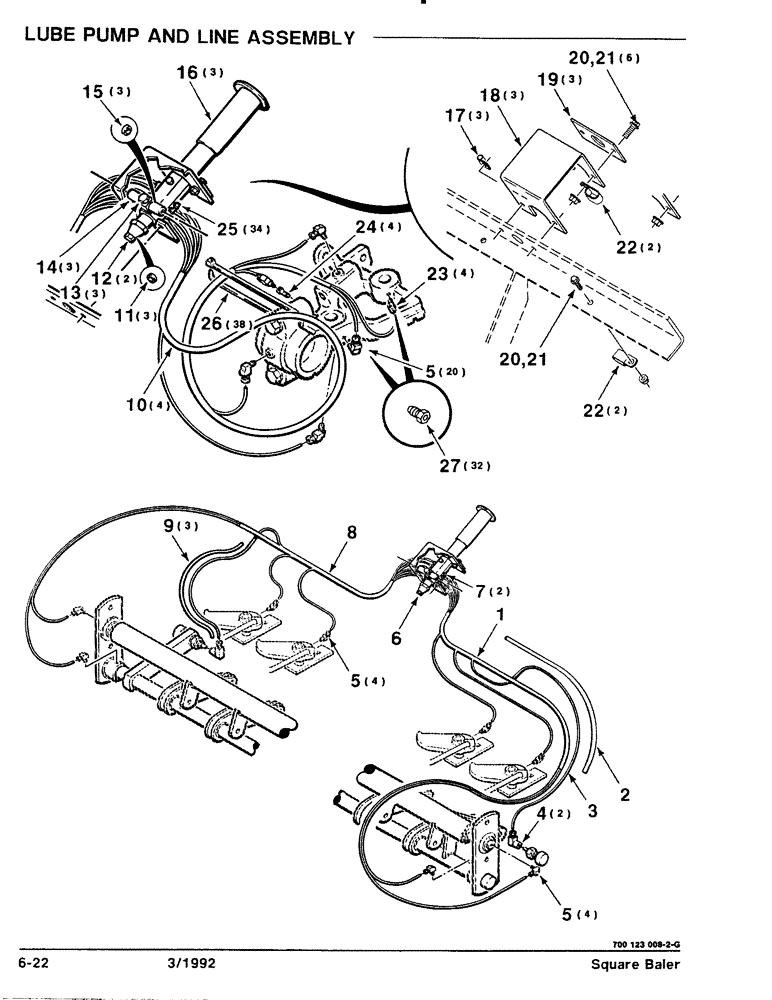

Схема запчастей Case IH 8570 - (6-22) - LUBE PUMP AND LINE ASSEMBLY (14) - BALE CHAMBER
19
24
11
26
9
22
8
10
13
12
16
18
5
17
15
5
7
20
3
23
4
27
6
20
2
5
14
21
21
22
25
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700123461

WIRE HARNESS

HARNESS - LEFT SIDE

1шт.

2

700123362

FLEXIBLE SHEATH

1/2 COVERING - PROTECTIVE (10 Foot Bulk)

1шт.

3

700113359

TUBE,0.125" OD, 3048 mm Length

TUBING - NYLON (10 Foot Bulk)

9шт.

4

700706279

COUPLING, QUICK, FEM

COUPLER - SNAP ON

2шт.

5

51200288

ELBOW

(Includes Item 27)

28шт.

6

700710976

PLUG

- STOP

1шт.

7

700710975

PLUG

2шт.

8

700123462

HARNESS

- RIGHT SIDE

1шт.

9

700113360

FLEXIBLE SHEATH

1/4 COVERING - PROTECTIVE (10 Foot Bulk)

3шт.

10

700123460

WIRE HARNESS

HARNESS - KNOTTER

4шт.

11

700706540

COPPER WASHER

GASKET - PLUG

3шт.

12

700706539

PLUG

- STOP

2шт.

13

700706543

3 WAY CONNECTION

STUD - TEE

3шт.

14

700706542

3 WAY CONNECTION

NIPPLE - TEE

3шт.

15

700706541

COPPER WASHER

GASKET - NIPPLE

3шт.

16

700706276

SMALL PUMP

PUMP - MULTILUBER

3шт.

17

751321

CLAMP

1/4 LINE CLAMP

3шт.

18

700113353

SUPPORT

- PUMP

3шт.

19

700113361

SUPPORT

PLATE - SUPPORT, PUMP

3шт.

20

7883275

SCREW,Hex Washer, 1/4" - 20 x 3/4"

1/4-20 X 3/4 HWHMS

7шт.

21

1703354

NUT

1/4-20 HFTLN GR/G

7шт.

22

700711751

CLAMP

4шт.

23

8746778

TUBE NUT

CONNECTOR - STRAIGHT (Includes Item 27)

4шт.

24

700706280

HYD CONNECTOR

EXTENSION - ZERK

4шт.

25

700706277

TUBE NUT

- COMPRESSION

34шт.

26

722470

MOUNTING CLIP

TIE - NYLON

38шт.

27

700706898

NUT

- COMPRESSION

32шт.
