Запчасти Case IH 8570 (6-18) - KNOTTER ASSEMBLY, WITHOUT SENTRALIZED LUBE (14) - BALE CHAMBER

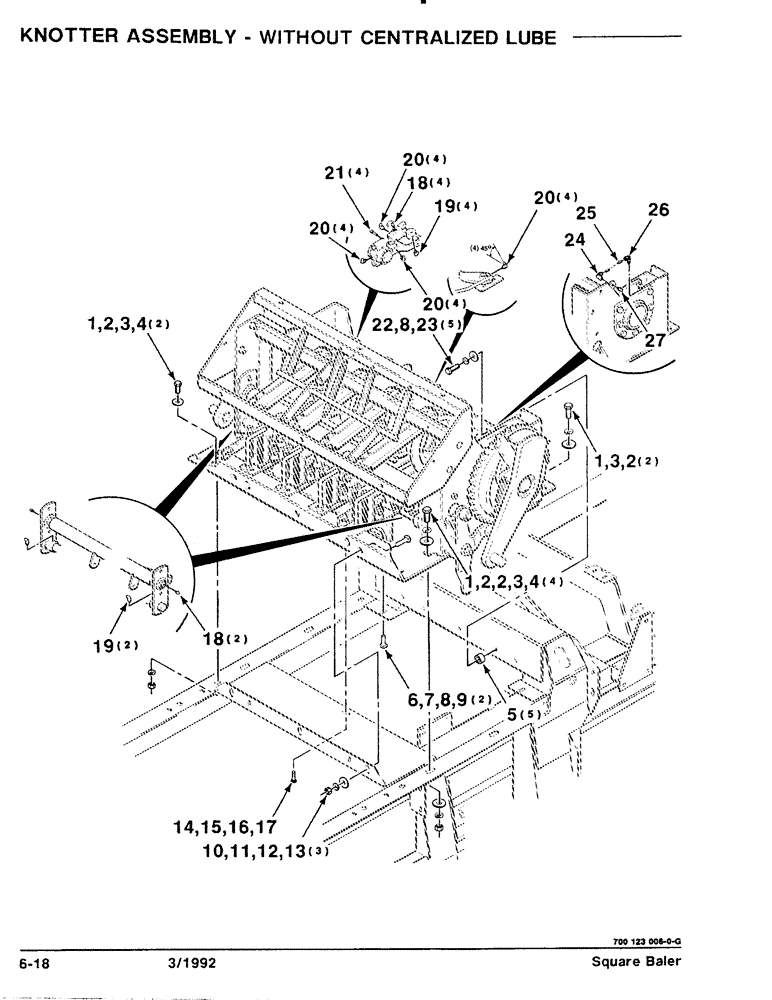

Схема запчастей Case IH 8570 - (6-18) - KNOTTER ASSEMBLY, WITHOUT SENTRALIZED LUBE (14) - BALE CHAMBER
1
2
17
1
21
3
11
18
3
26
2
10
3
23
7
20
1
5
8
20
2
4
25
8
4
6
22
19
2
12
24
27
20
20
18
14
19
15
9
16
13

Артикул

Название

Примечание

Количество

1

7701196

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

3/4-10 X 1-3/4 C

8шт.

2

705566

WASHER

3/4 HARDENED PLAIN WASHER

12шт.

3

705111

LOCK WASHER,3/4"

3/4"

8шт.

4

704528

NUT,3/4"-10, G5

3/4-10 H

6шт.

5

6591614

SPACER,14.27mm ID x 23.01mm OD x 13mm L

5шт.

6

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

2шт.

7

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

9

704031

NUT

1/2-13 H

2шт.

10

7870140

BOLT,Sq Nk, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 RHSNB

3шт.

11

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

3шт.

12

705061

PLUG

5/8"

3шт.

13

704130

NUT,5/8"-11, G5

5/8-11 H

3шт.

14

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

1шт.

15

705533

WASHER

3/8 HARDENED PLAIN WASHER

1шт.

16

705038

CONTROL VALVE

3/8"

1шт.

17

704023

NUT,3/8"-16, G5

3/8-16 H

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

6шт.

19

77040

FITTING

1/4-28 X 45 DEGREE ZERK

6шт.

20

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 X 90 DEGREE ZERK

16шт.

21

77255

FITTING

1/4-28 ZERK

4шт.

22

703983

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 C

5шт.

23

700709605

WASHER,1/2"

1/2 WIDE PLAIN WASHER

5шт.

24

7746829

ELBOW

- COMPRESSION

1шт.

25

6845929

LINE

- GREASE

1шт.

26

7746035

ELBOW

1/8 NPTF X 3/16 ELBOW

1шт.

27

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8 NPTF ZERK

1шт.

Выбрано товаров: 27
