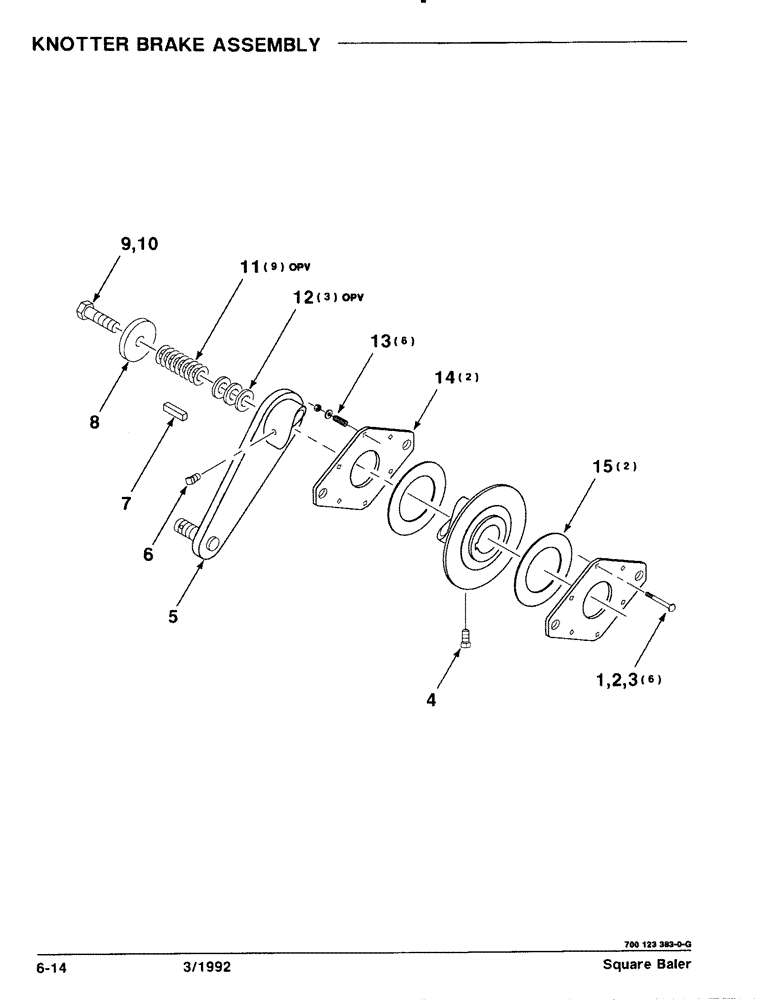

Запчасти Case IH 8570 (6-14) - KNOTTER BRAKE ASSEMBLY (14) - BALE CHAMBER

1

7770506

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

6шт.

2

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

6шт.

3

74781

NUT

3/8-16 LHSN

6шт.

4

69252

SET SCREW

1/2-13 X 3/4 CPSQHSS

1шт.

5

700123384

ARM

WA - RIGHT

1шт.

6

69260

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CPSQHSS

1шт.

7

61879

KEY

1шт.

8

6561351

CAP WASHER

1шт.

9

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 C

1шт.

10

705061

PLUG

5/8"

1шт.

11

6553275

SHIM

- COUNTERSHAFT

9шт.

12

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

5/8 P

3шт.

13

58644

SPRING

- COMPRESSION

6шт.

14

6578868

LARGE PLATE

PLATE - PRESSURE

2шт.

15

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - CLUTCH

2шт.
