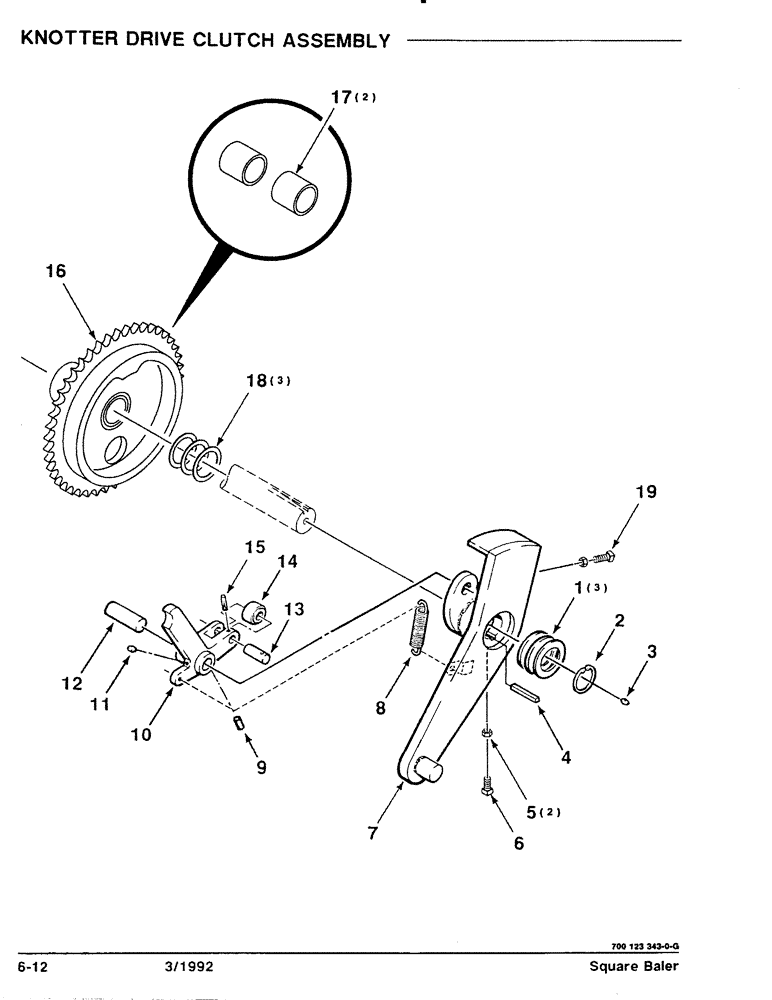

Запчасти Case IH 8570 (6-12) - KNOTTER DRIVE CLUTCH ASSEMBLY (14) - BALE CHAMBER

1

6523534

SHIM

3шт.

2

52605

RING

- RETAINING, EXTERNAL

1шт.

3

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

1шт.

4

61879

KEY

1/2 X 1/2 X 1-1/2 KEY

1шт.

5

700710414

JAM NUT

1/2-13 HEX JAM NUT GRD 8 BF

2шт.

6

69260

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CPSQHSS

1шт.

7

700123348

ARM

- CLUTCH, NEEDLE

1шт.

8

758268

SPRING

- EXTENSION

1шт.

9

708230

BOLT,5/16" - 18 x 3/4"

5/16-18 X 3/4 HDPHSS

1шт.

10

6523526

CLUTCH

ARM - DOG

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

12

6523518

SHAFT

- PIVOT, DOG

1шт.

13

6524649

PIN

SHAFT - ROLLER

1шт.

14

6524623

ROLLER,41.28mm OD x 18.67mm L

- CAM

1шт.

15

763987

PIN

1/4 X 1-1/4 GROOVE PIN

1шт.

16

700123343

SPROCKET ASSY.

SPROCKET ASM. (Includes Item 17)

1шт.

17

700122883

BRONZE BUSHING

BEARING - BRONZE

2шт.

18

6523500

WASHER

BUSHING

3шт.

19

708081

SET SCREW,Sq Hd, 1/2"-13 x 1 1/4"

1/2-13 X 1-1/4 SQHSS

1шт.
