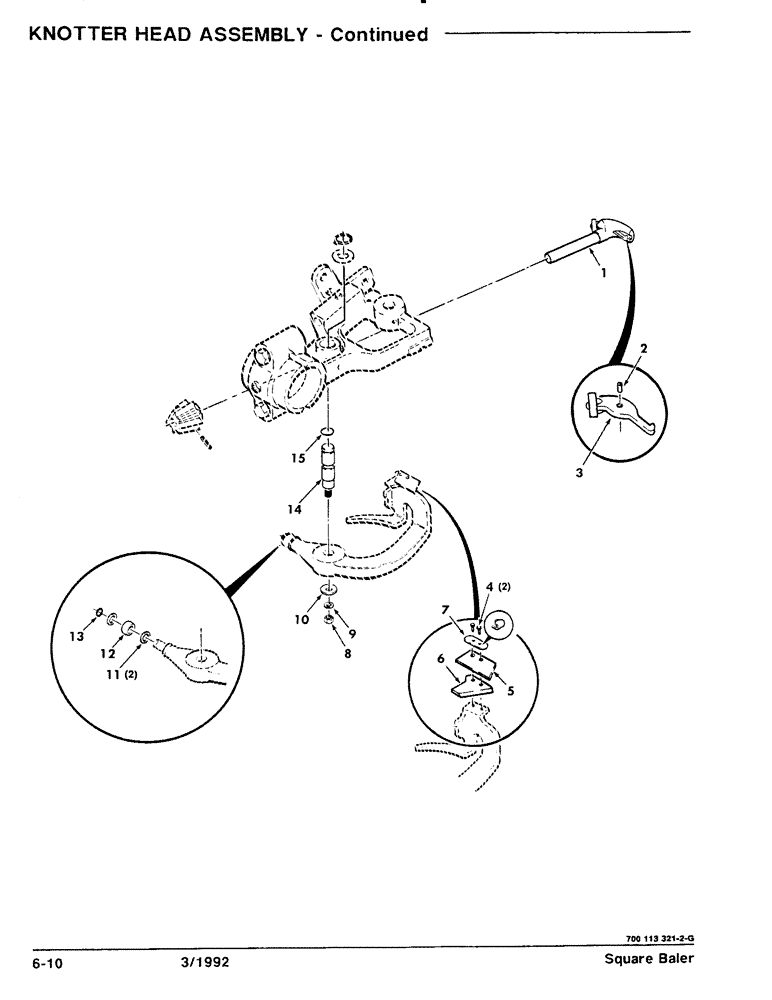

Запчасти Case IH 8570 (6-10) - KNOTTER HEAD ASSEMBLY, CONTINUED (14) - BALE CHAMBER

1

700700969

BILL HOOK

ASSEMBLY

1шт.

2

37-138

DOWEL,3/16" x 1/2"

3/16 X 1/2 DOWEL PIN

1шт.

3

1712835

HOOK

TONGUE - BILL HOOK

1шт.

4

8701625

SCREW,Hex, #10 - 32 x 1/2"

#10-32 X 1/2 HHMS GRD 2

2шт.

5

700102136

KNIFE

BASE - KNIFE, TWINE

1шт.

6

49783

KNIFE

- TWINE

1шт.

7

6613624

WASHER, LOCK

TAB - LOCK

1шт.

8

704148

NUT

1/2-20 H

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

6591572

WASHER

- SPECIAL

1шт.

11

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

MACHINERY BUSHING - SPECIAL

2шт.

12

700122799

ROLLER

- SPHERICAL

1шт.

13

7852577

RING, SNAP

RING - RETAINER

1шт.

14

6591580

SHAFT

- STRIPPER ARM

1шт.

15

733048

O-RING

1шт.
