Запчасти Case IH 8570 (6-08) - KNOTTER HEAD ASSEMBLY, 700113321 KNOTTER HEAD ASSEMBLY, COMPLETE (14) - BALE CHAMBER

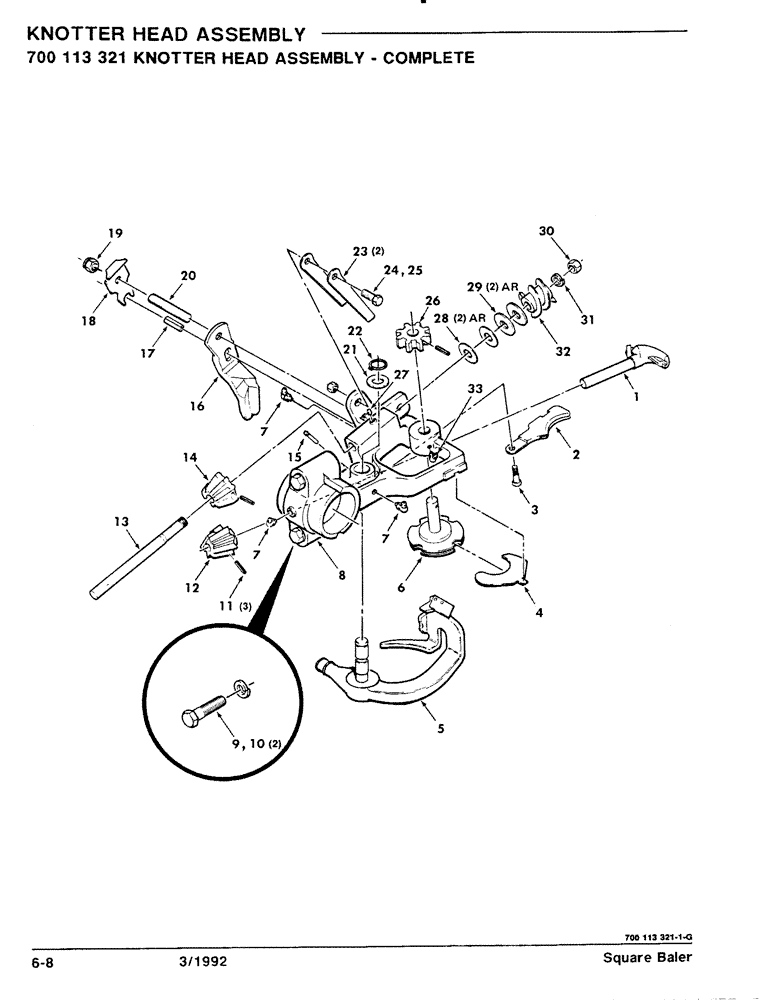

Схема запчастей Case IH 8570 - (6-08) - KNOTTER HEAD ASSEMBLY, 700113321 KNOTTER HEAD ASSEMBLY, COMPLETE (14) - BALE CHAMBER
4
17
12
5
25
7
23
30
24
28
22
10
2
32
1
31
27
9
11
26
3
33
7
14
18
8
7
15
29
21
13
6
16
19
20

Артикул

Название

Примечание

Количество

1

700700968

KNOTTER

BILL HOOK ASSEMBLY - KNOTTER

1шт.

2

8045148

HOLDER

- TWINE

1шт.

3

702400022

SCREW

5/16-18 SHOULDER SCREW

1шт.

4

6523807

CLEANER

- KNOTTER

1шт.

5

700106772

SUPPORTING ARM

ARM ASSEMBLY - STRIPPER

1шт.

6

1712868

DISC

ASSEMBLY - TWINE

1шт.

7

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

1/4-28 X 90 DEGREE ZERK

3шт.

8

6591440

ASSEMBLY

FRAME ASM. (Includes Items 9 & 10)

1шт.

9

7701675

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 X 2 C

2шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

11

863761

PIN, GROOVED

3/16 X 7/8 GROOVE PIN TYPE F

3шт.

12

7894389

PINION

GEAR - PINION, BILL HOOK

1шт.

13

6553267

SHORT SHAFT

SHAFT - KNOTTER, WORM

1шт.

14

702700040

WORM GEAR

GEAR - PINION, WORM

1шт.

15

77255

FITTING

1/4-28 EXTENDED ZERK

1шт.

16

700113323

CAM

- BILL HOOK

1шт.

17

138-153

LOCK PIN,5/16" x 1", Slotted

5/16 X 1 SPIRAL SPRING PIN

1шт.

18

7895733

SPRING

TENSIONER - SPRING

1шт.

19

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

20

6523229

STUD

- MOUNTING

1шт.

21

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

25/32 X 20 GAUGE NRMB - SPECIAL

1шт.

22

852533

OIL SEAL

3/4 SNAP RING - EXTERNAL

1шт.

23

6553259

SPRING

- TWINE

2шт.

24

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

25

704064

NUT

3/8-16 HEX JAM NUT

1шт.

26

7894454

PINION

GEAR - PINION TWINE

1шт.

27

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

28

6553275

SHIM

- COUNTERSHAFT

2шт.

29

7852163

BUSHING

5/8 X 20 GAUGE NRMB

2шт.

30

704304

NUT

3/8-24 H

1шт.

31

705038

CONTROL VALVE

3/8"

1шт.

32

7894413

WORM GEAR

GEAR - WORM

1шт.

33

87569

LUBE NIPPLE,45 Degree, 1/4" NPT x 4/5" L, Drive

1/4-28 X 45 DEGREE ZERK

1шт.

Выбрано товаров: 33
