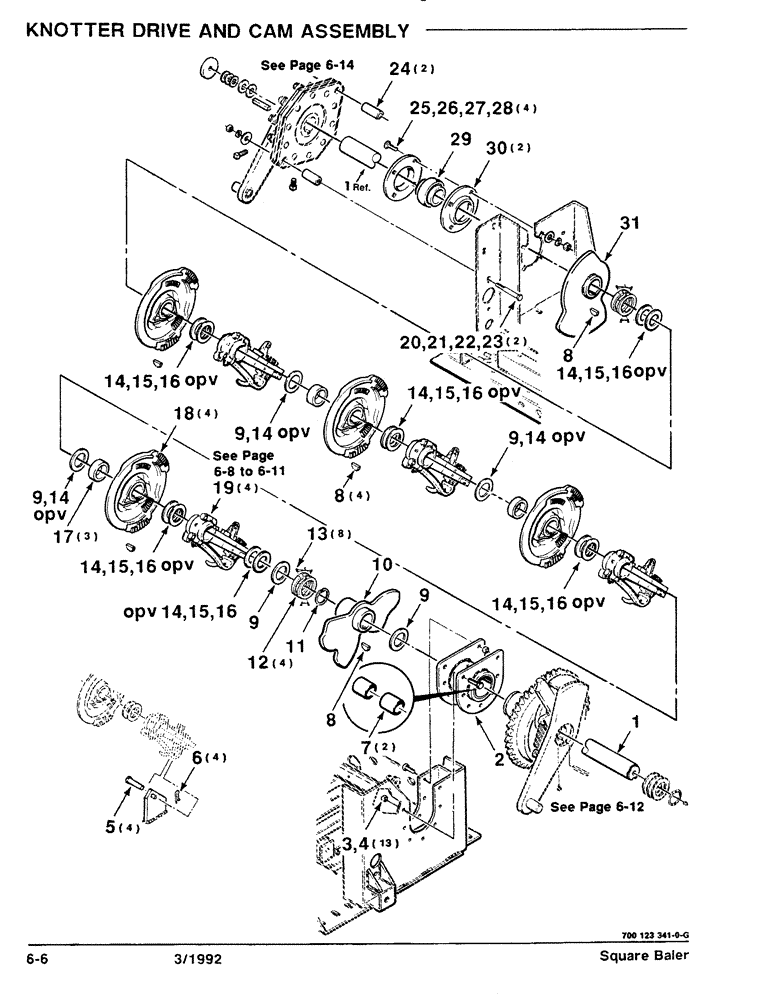

Запчасти Case IH 8570 (6-06) - KNOTTER DRIVE AND CAM ASSEMBLY (14) - BALE CHAMBER

1

700123342

SHAFT

- DRIVE, KNOTTER

1шт.

2

6844773

ASSEMBLY

BRACKET - MTG. (Includes Item 7)

1шт.

3

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

13шт.

4

704858

LOCK NUT

1/2-13 HTLN GR/B

13шт.

5

063586

CLEVIS PIN

3/8 X 1-1/8 CLEVIS PIN

4шт.

6

62349

LOCK WASHER

.149 WIRE HAIRPIN COTTER

4шт.

7

6565014

BRONZE BUSHING,89.08mm ID x 101.8mm OD x 44.58mm L

BUSHING

2шт.

8

861187

WOODRUFF KEY,#G, 3/8" x 1 1/2"

3/8 X 1-1/2 WOODRUFF KEY

6шт.

9

6523500

WASHER

BUSHING

4шт.

10

700123346

CAM

- FINGER

1шт.

11

52605

RING

- RETAINER, EXTERNAL

1шт.

12

6591457

SHIM

- HALF, ADJUSTABLE

4шт.

13

8701484

DRIVE SCREW,Rd Hd, #10 x 1/2", U Type

#10 X 1/2 METALIC DRIVE SCREW

8шт.

14

6523534

SHIM

.010 SHIM

9шт.

15

6523542

SHIM

.031 SHIM

6шт.

16

6613665

SHIM,57.15mm ID x 76.2mm OD x 0.13mm Thk

.005 SHIM

6шт.

17

6591549

SPACER

3шт.

18

700100868

CAM

GEAR - KNOTTER

4шт.

19

700113321

KNOTTER

HEAD ASSEMBLY

4шт.

20

70924136

SCREW

5/8-11 X 3-3/4 C

2шт.

21

700709606

WASHER,5/8"

5/8 WIDE PLAIN WASHER

2шт.

22

705061

PLUG

5/8"

2шт.

23

704924

NUT

5/8-11 HTLN GR/B

2шт.

24

235663

BUSHING

SPACER

2шт.

25

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

4шт.

26

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

28

86516876

COVER

1/2-13 H

4шт.

29

8050478

BALL BEARING,55.56mm ID x 100mm OD x 21mm W

BEARING - SPHERICAL

1шт.

30

714360

FLANGED BEARING

FLANGE - BEARING

2шт.

31

700123344

CAM

- TUCKER

1шт.
