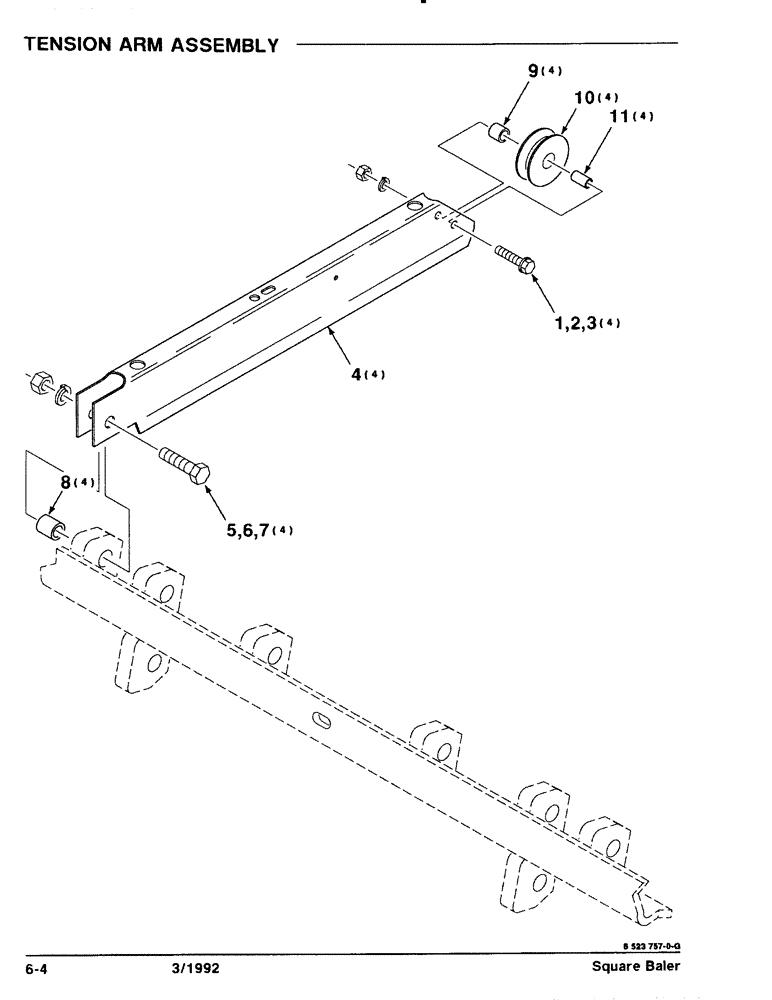

Запчасти Case IH 8570 (6-04) - TENSION ARM ASSEMBLY (14) - BALE CHAMBER

1

771345

SCREW,Hex, #10 - 24 x 1"

#10 - 24 X 1 HWHMS

4шт.

2

705004

LOCK WASHER

#10 L

4шт.

3

704072

NUT

10-24 H GR2

4шт.

4

6523765

ARM

- TENSION

4шт.

5

7706768

DRIVE BUSHING,38.25mm ID x 47.74mm OD x 36.1mm L

5/16-18 X 1-1/4 C

4шт.

6

705020

LOCK WASHER

5/16"

4шт.

7

704015

NUT,5/16"-18, G5

5/16-18 H

4шт.

8

6523799

BUSHING

- TENSIONER

4шт.

9

7849656

SLEEVE

- ROLLER

4шт.

10

6529945

ROLLER

4шт.

11

7849110

BUSHING,5.23mm ID x 6.99mm OD x 13.49mm L

BUSHING - ROLLER

4шт.
