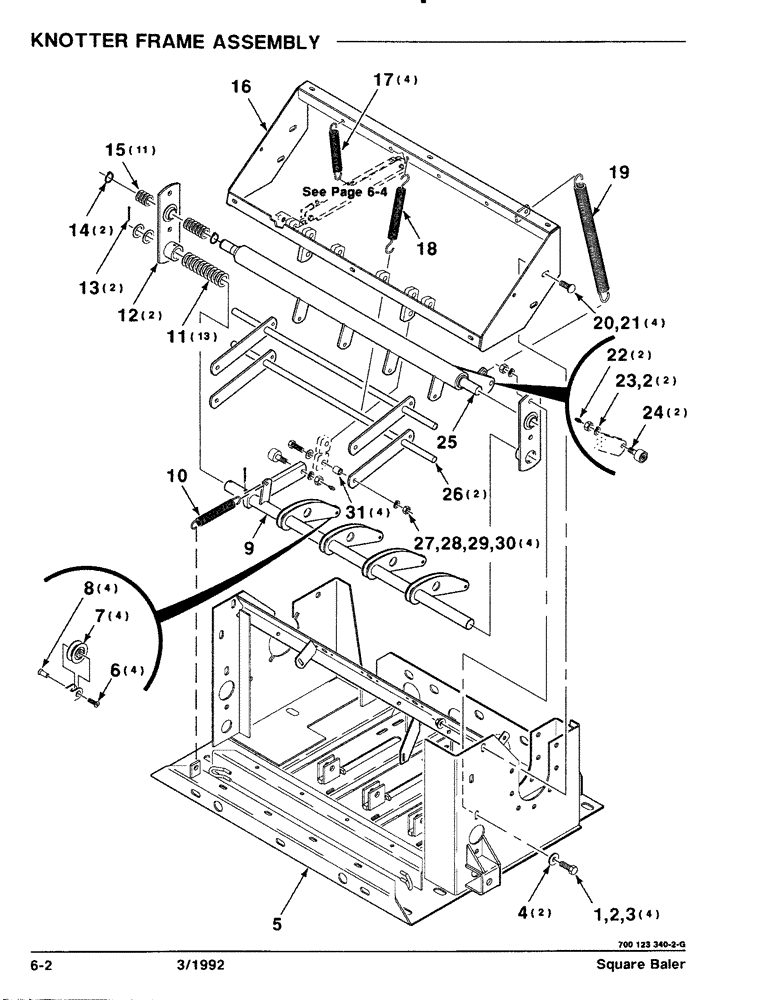

Запчасти Case IH 8570 (6-02) - KNOTTER FRAME ASSEMBLY (14) - BALE CHAMBER

1

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

3

704031

NUT

1/2 -13 H

4шт.

4

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

5

700123351

FUNNEL

FRAME WA - KNOTTER

1шт.

6

8701476

HEX SOC SCREW,Flat Hd, CSK, #10 - 32 x 1/2"

#10-32 X 1/2 HSFCHCS

4шт.

7

700707700

BALL BEARING,6.48 mm ID x 31.75 mm OD x 13.08 mm

ROLLER - BEARING

4шт.

8

866566

FASTENER,#10 - 32 x 9/16"

#10-32 FASTENER - SPECIAL

4шт.

9

700123374

ARM

ASM. (Includes Items 6, 7 & 8)

1шт.

10

858308

SPRING

- EXTENSION

1шт.

11

495-81205

WASHER,32.54mm ID x 50.8mm OD x 1.7mm Thk

1-1/4 X 18 GAUGE NRMB

13шт.

12

700113342

SUPPORT

- BEARING

2шт.

13

62422

PIN

5/32 X 1-1/4 COTTER PIN

2шт.

14

738633

RING, SNAP

RING - RETAINING

2шт.

15

52209

WASHER

1 X 18 GAUGE NRMB

11шт.

16

700123376

FUNNEL

FRAME WA - TENSION ARM

1шт.

17

758482

TENSION SPRING

SPRING - EXTENSION

4шт.

18

700712484

SPRING

- EXTENSION

1шт.

19

58859

SPRING

- EXTENSION

1шт.

20

7700131

SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

21

704254

NUT,Flg, USR, 1/2"-13

1/2-13 HFSLN GR/F

4шт.

22

77206

FITTING

3/16 PUSH DRIVE ZERK

2шт.

23

704148

NUT

1/2-20 H

2шт.

24

8050866

CAM FOLLOWER

ROLLER - CAM

2шт.

25

700123370

SHAFT

- TWINE FINGER

1шт.

26

700123381

ROD

- MONITORING

2шт.

27

7701568

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 1-1/4 C

4шт.

28

700709602

WASHER,5/16"

5/16 WIDE PLAIN WASHER

4шт.

29

705020

LOCK WASHER

5/16"

4шт.

30

704015

NUT,5/16"-18, G5

5/16-18 H

4шт.

31

6523799

BUSHING

4шт.
