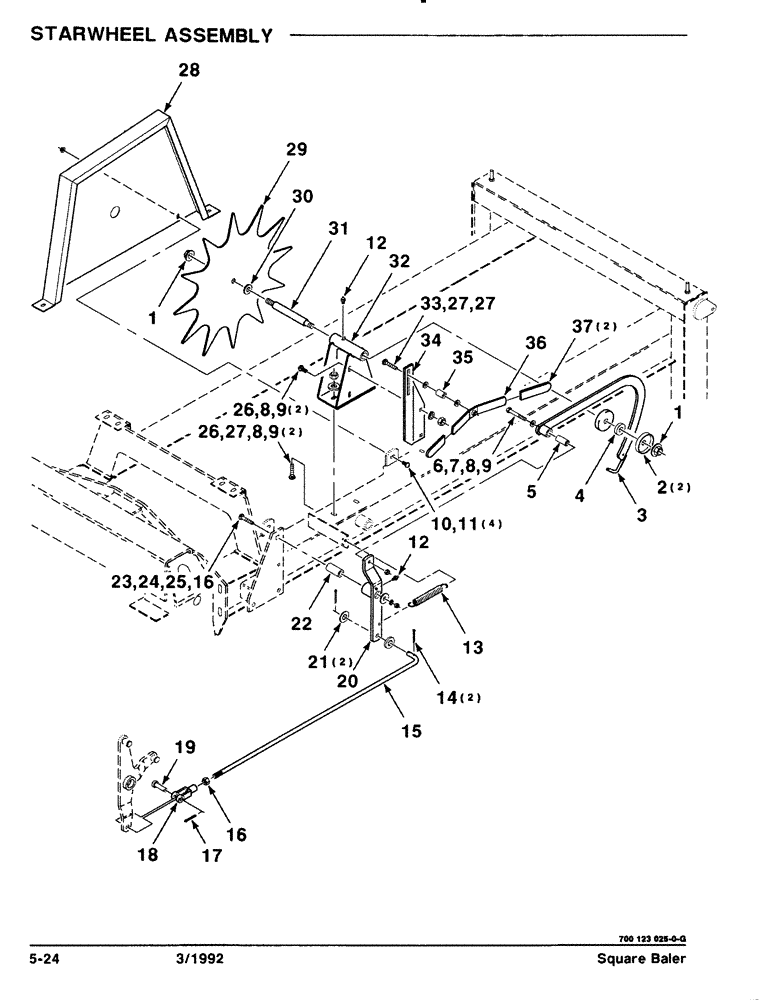

Запчасти Case IH 8570 (5-24) - STARWHEEL ASSEMBLY (13) - FEEDER

1

700703922

LOCK NUT,Flg, 5/8"-11

5/8-11 HFTLN

2шт.

2

700123850

SHIELD

2шт.

3

700123857

ARM

1шт.

4

6530489

HUB

SPACER

1шт.

5

700109003

BUSHING

1шт.

6

702928

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8-16 X 2-3/4 C

1шт.

7

700709603

WASHER,3/8"

3/8 WIDE PLAIN WASHER

1шт.

8

705038

CONTROL VALVE

3/8"

5шт.

9

704023

NUT,3/8"-16, G5

3/8-16 H

5шт.

10

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

4шт.

11

704239

FRONT AXLE

5/16-18 HFSLN

4шт.

12

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

2шт.

13

758441

SPRING

1шт.

14

62174

PIN

5/32 X 1 COTTER PIN

2шт.

15

700123860

ROD

- LINKAGE

1шт.

16

86516876

COVER

1/2-13 H

2шт.

17

62083

PIN

1/8 X 1 COTTER PIN

1шт.

18

066183

CLEVIS

1шт.

19

63685

BELT, TRANSMISSION

1/2 X 1-1/2 CLEVIS PIN

1шт.

20

700123852

ARM

- PIVOT

1шт.

21

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

2шт.

22

6621825

SPACER

BUSHING

1шт.

23

7770720

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/4", G5

1/2-13 X 3-1/4 RHSNB

1шт.

24

700709605

WASHER,1/2"

1/2 WIDE PLAIN WASHER

1шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

26

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

27

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

4шт.

28

700123861

SHIELD

- STARWHEEL

1шт.

29

700123856

SPROCKET ASSY.

STARWHEEL

1шт.

30

NLS

NO LONGER SERVICED

5/8 HARDENED PLAIN WASHER

1шт.

31

700123855

SHAFT

- STARWHEEL

1шт.

32

6530265

BRACKET

1шт.

33

7700016

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 RHSNB

1шт.

34

700123859

SUPPORT

1шт.

35

6229298

SPACER

BUSHING

1шт.

36

700123991

LEVER

1шт.

37

827360

HANDLE

GRIP

2шт.
