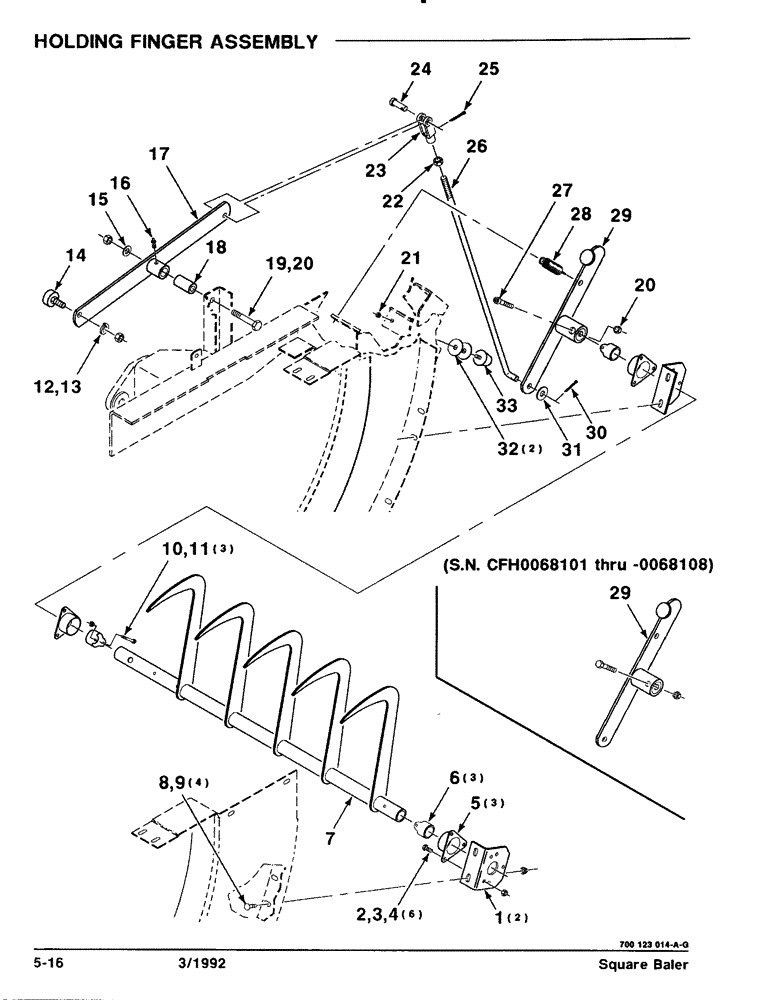

Запчасти Case IH 8570 (5-16) - HOLDING FINGER ASSEMBLY (13) - FEEDER

1

6845507

BRACKET

- MOUNTING

2шт.

2

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

6шт.

3

705020

LOCK WASHER

5/16"

6шт.

4

704015

NUT,5/16"-18, G5

5/16-18 H

6шт.

5

700119832

HOUSING

- BEARING

3шт.

6

6105159

NYLON BEARING,1.75"

BEARING - TINE

3шт.

7

700123465

FINGER

1шт.

8

700047

BOLT

3/8-16 X 1 RHSNB

4шт.

9

704247

NUT

3/8-16 HFSLN

4шт.

10

7701485

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4-20 X 2 C

3шт.

11

7774839

LOCK NUT

1/4-20 HTLN

3шт.

12

704148

NUT

1/2-20 H

1шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

14

700705612

CAM FOLLOWER

BEARING -CAM

1шт.

15

700709605

WASHER,1/2"

1/2 WIDE PLAIN WASHER

1шт.

16

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

1шт.

17

700123467

LEVER

1шт.

18

6799654

SPACER

BUSHING

1шт.

The shadowed bracket post between ref's #18 & #19 is part # 700123555. SMA 7/1/98

1шт.

19

7702038

SCREW,Hex, 1/2" - 13 x 3", Gr 5

1/2-13 X 3 C

1шт.

20

704858

LOCK NUT

1/2-13 HTLN

2шт.

21

704536

LOCK NUT

5/16-24 HCLN

1шт.

22

86516876

COVER

1/2-13 H

1шт.

23

66183

SHAFT

1шт.

24

NLS

NO LONGER SERVICED

1/2 X 1-1/2 CLEVIS PIN

1шт.

25

62083

PIN

1/8 X 1 COTTER PIN

1шт.

26

700123470

ROD

- CONNECTING

1шт.

27

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

1/2-13 X 2-1/2 C (S.N. CFH0068101 thru -0068108)

1шт.

700706548

HEX SOC SCREW

1/2-13 X 2-1/4 HSHCS (S.N. CFH0068109 and on)

1шт.

28

7058985

SPRING

- EXTENSION

1шт.

29

700112836

ARM

WA (S.N. CFH0068101 thru -0068108

1шт.

700123488

ARM

WA (S.N. 4750-0068109 and on)

1шт.

30

62224

PIN, SPLIT (COTTER)

3/16 X 1 COTTER PIN

1шт.

31

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

1шт.

32

7705734

WASHER

3/8 FENDER WASHER

2шт.

33

827568

BUMPER

- RUBBER

1шт.
