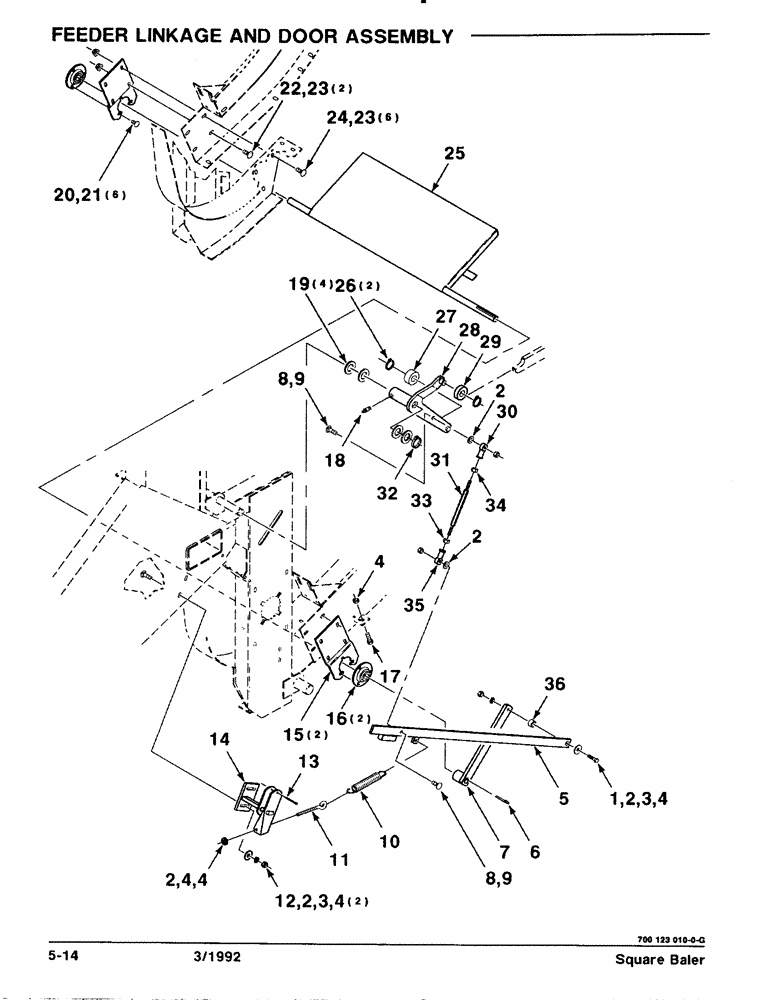

Запчасти Case IH 8570 (5-14) - FEEDER LINKAGE AND DOOR ASSEMBLY (13) - FEEDER

1

703603

SCREW

3/8-16 X 1-1/2 C

1шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

6шт.

3

705038

CONTROL VALVE

3/8"

3шт.

4

704023

NUT,3/8"-16, G5

3/8-16 H

6шт.

5

700123429

ARM

- TRIP

1шт.

6

61978

KEY

1/4 X 2-1/2 GIB KEY

1шт.

7

6524946

WIPER ARM

ARM - DOOR

1шт.

8

768036

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

3/8-16 X 1-1/2 RHSNB

2шт.

9

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN

2шт.

10

858308

SPRING

- TENSION

1шт.

11

766485

EYEBOLT,3/8" - 16 x 5", Full Thd

DRAW BOLT

1шт.

12

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

2шт.

13

NLS

NO LONGER SERVICED

1/4 X 2 COTTER PIN

1шт.

14

700123432

STOP

- ARM

1шт.

15

700112815

SUPPORT

2шт.

16

N5077

FLANGED BEARING

BEARING

2шт.

17

772434

SCREW,3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 FTC

1шт.

18

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

1шт.

19

495-81070

WASHER,1 1/32" x 1 1/2" x .120"

1 X 10 NRMB

4шт.

20

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

6шт.

21

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN

6шт.

22

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

23

704247

NUT

3/8-16 HFSLN

8шт.

24

700047

BOLT

3/8-16 X 1 RHSNB

6шт.

25

700123425

DOOR

1шт.

26

852533

OIL SEAL

SNAP RING

2шт.

27

6524870

ROLLER,41.28mm OD x 19mm L

- CAM

1шт.

28

700123435

STOP

ARM - CAM

1шт.

29

6525042

ROLLER,41.28mm OD x 12.5mm L

- CAM

1шт.

30

CAS51383

END

BRG-ROD END

1шт.

31

700123439

ROD

1шт.

32

740159

RING, SNAP

SNAP RING

1шт.

33

700705510

NUT

3/8-24 HEX NUT (LH THREAD)

1шт.

34

704304

NUT

3/8-24 HEX NUT

1шт.

35

700705523

SPHERICAL BEARING,9.52 mm ID x 12.7 mm

BRG-ROD END (LH THREAD)

1шт.

36

6179832

SPACER

1шт.
