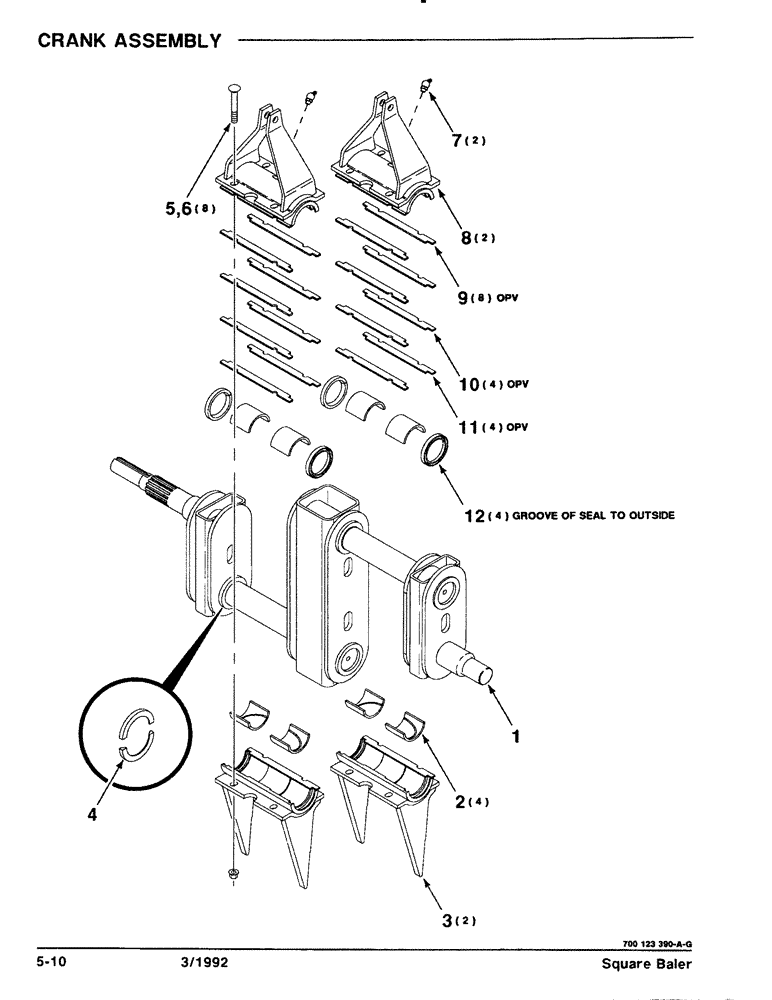

Запчасти Case IH 8570 (5-10) - CRANK ASSEMBLY (13) - FEEDER

1

700123391

CRANK

WA

1шт.

2

700706131

BEARING SET,60.15mm ID x 70.12mm OD x 60mm L

BEARING (PAIR)

4шт.

3

700112787

FINGER

WA

2шт.

4

700122670

KIT

SPLIT RING KIT (Includes 12 Halves)

1шт.

5

7770753

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 3/4", Gr 5

1/2-13 X 3-3/4 RHSNB

8шт.

6

704742

ROD

1/2-13 HFTLN GR/G

8шт.

7

77081

FITTING

1/8-27 PTF X 45 DEGREE ZERK

2шт.

8

700112817

SUPPORT

ARM WA

2шт.

9

700706850

SHIM

- 0.51 / .020

8шт.

10

700706133

SHIM

- 0.25 / .010

4шт.

11

700706134

SHIM

- 0.13 / .005

4шт.

12

700706096

SEAL

4шт.
