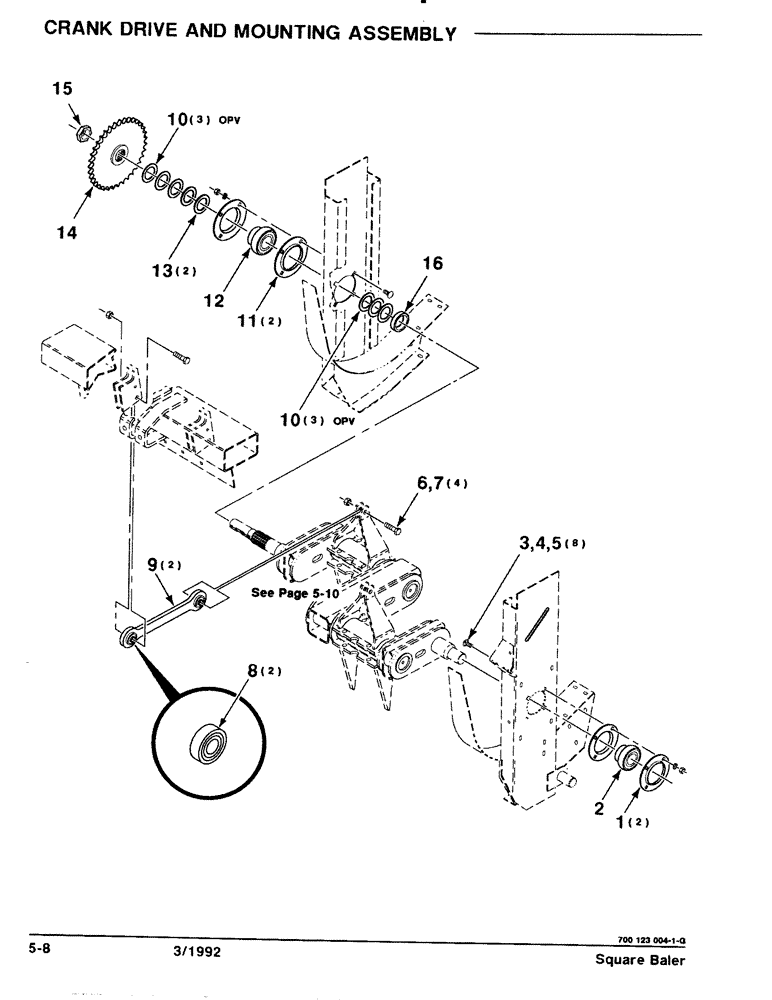

Запчасти Case IH 8570 (5-08) - CRANK DRIVE AND MOUNTING ASSEMBLY (13) - FEEDER

1

50583

FLANGED BEARING

- BEARING

2шт.

2

51318

BEARING

- SPHERICAL

1шт.

3

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

8шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

5

704031

NUT

1/2-13 H

8шт.

6

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

4шт.

7

7774482

NUT

5/8-11 HTLN GR/C

4шт.

8

8050601

BEARING, ROLLER, CYL,15.875 mm ID x 49.213 mm OD x 20.65 mm

- CYLINDERICAL

2шт.

9

700121909

LINK CONROD

LINK ASSEMBLY (Includes Item 8)

2шт.

10

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

6шт.

11

714360

FLANGED BEARING

FLANGE - BEARING

2шт.

12

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - SPHERICAL

1шт.

13

740407

BRUSH, COMMUTATOR

2 X 10 GAUGE NRMB

2шт.

14

700123418

SPROCKET ASSY.

SPROCKET WA - 80C35

1шт.

15

700113661

NUT

1-5/8-12 STAKE NUT

1шт.

16

700113666

SPACER

1шт.
