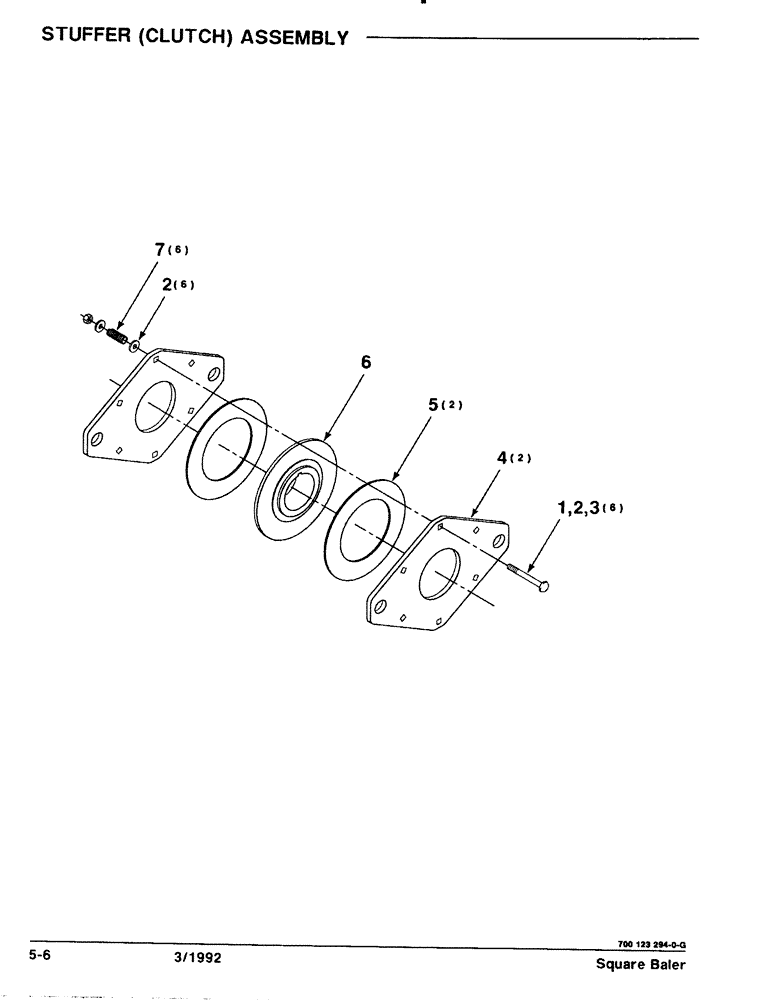

Запчасти Case IH 8570 (5-06) - STUFFER, CLUTCH ASSEMBLY (13) - FEEDER

1

7770506

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 RHSNB

6шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

12шт.

3

74781

NUT

3/8-16 LHSN

6шт.

4

6578868

LARGE PLATE

PLATE - PRESSURE 2

2шт.

5

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - CLUTCH

2шт.

6

700123295

HUB

WA

1шт.

7

758011

SPRING

- COMPRESSION

6шт.
