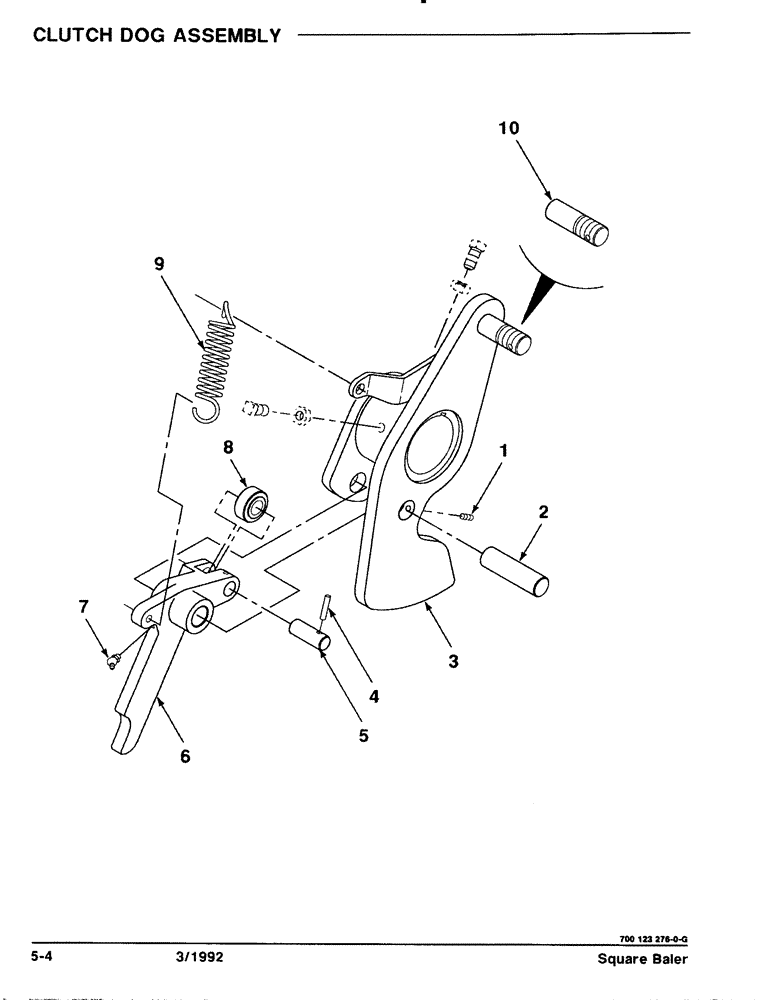

Запчасти Case IH 8570 (5-04) - CLUTCH DOG ASSEMBLY (13) - FEEDER

1

708230

BOLT,5/16" - 18 x 3/4"

5/16 X 3/4 HDPHSSS

1шт.

2

700123278

SHAFT

- CLUTCH

1шт.

3

700123279

ARM

- CLUTCH

1шт.

4

763987

PIN

1/4 X 1-1/4 PIN - GROOVED

1шт.

5

6524649

PIN

SHAFT - CLUTCH

1шт.

6

700123277

ARM

- CLUTCH

1шт.

Ref #6- A new clutch arm is available with a machined tip for better engagement of disengage roller. It is p/n 700134412. Can fit 8575 balers as well. By: tsg bc 11/13/97

1шт.

7

77040

FITTING

1/4-28 X 45 DEGREE ZERK

1шт.

8

6524623

ROLLER,41.28mm OD x 18.67mm L

1шт.

9

758268

SPRING

- EXTENSION

1шт.

10

700123285

SHAFT

1шт.
