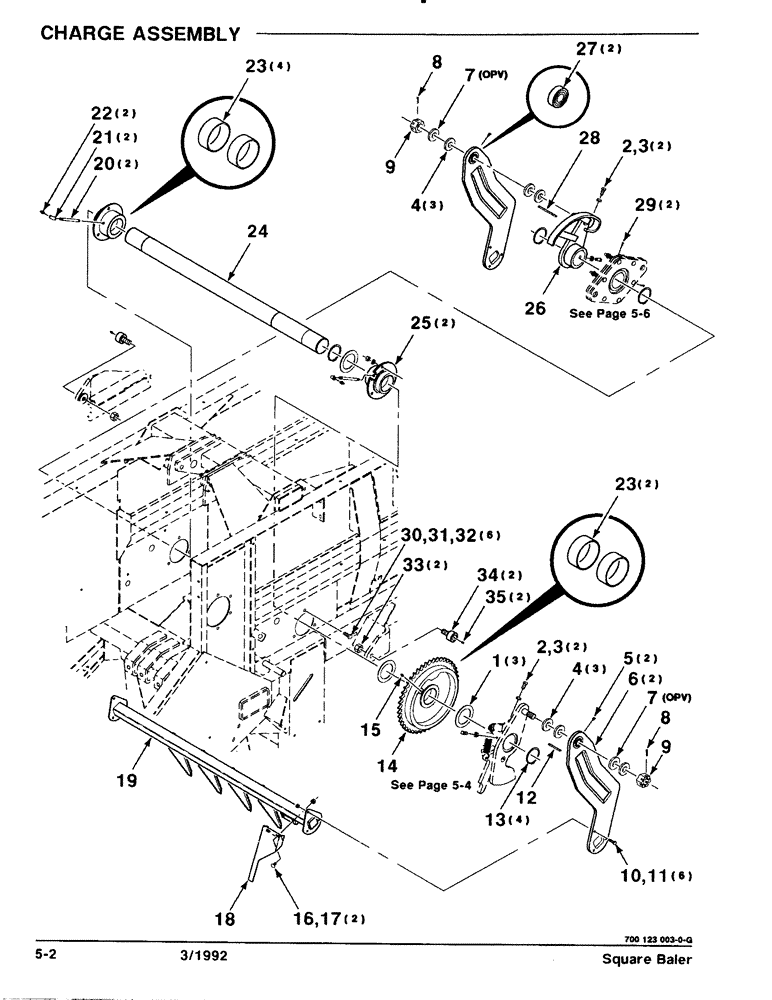

Запчасти Case IH 8570 (5-02) - CHARGE ASSEMBLY (13) - FEEDER

1

700123293

WASHER

3шт.

2

69260

SET SCREW,Sq Hd, 1/2"-13 x 1"

1/2-13 X 1 CPSQHSS

4шт.

3

700710414

JAM NUT

1/2-13 HJN GR2

4шт.

4

52316

WASHER

1 X 10 GAUGE NRMB

6шт.

5

77057

1/4-28 X 90 DEGREE ZERK

2шт.

6

700123271

ARM

ASM. - CAM (Includes Item 27)

2шт.

7

52258

BUSHING

1 X 14 GAUGE NRMB

2шт.

8

62786

RIVET,Rd Hd, M4 x 48, Aluminum

1/4 X 2-1/2 COTTER PIN

2шт.

9

704692

NUT

1-14 SHN GR2

2шт.

10

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

6шт.

11

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

6шт.

12

761312

KEY

5/16 X 5/16 X 2-1/2 KEY

1шт.

13

7852767

RING

- RETAINING

4шт.

14

700123291

SPROCKET ASSY.

SPROCKET ASM, (Includes Items 23)

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

16

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

2шт.

17

704734

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

18

700123263

FINGER

1шт.

19

700123266

FINGER

WA - STUFFER

1шт.

20

8746042

LUBE NIPPLE

1/8-27 NPT X 5-1/2 NIPPLE

2шт.

21

217-1050

90 ELBOW,1/8" - 27 NPTF Female

1/8-27 NPT X 90 DEGREE PIPE ELBOW,BUSHING - reducer

2шт.

22

77065

LUBE NIPPLE,1/8"-27 x .66 lg

1/8-27 ZERK

2шт.

23

700123304

BRONZE BUSHING

BUSHING - BRONZE

6шт.

24

700123292

SHAFT

- STUFFER

1шт.

25

700123287

SUPPORT

ASM. (Includes Items 23)

2шт.

26

700123298

CRANK

WA - RIGHT

1шт.

27

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

BUSHING

2шт.

28

6201404

KEY

5/16 X 5/16 X 3-3/4 KEY

1шт.

29

69203

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

3/8-16 X 3/4 CPSQHSS

2шт.

30

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

6шт.

31

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

32

86516876

COVER

1/2-13 H

6шт.

33

700706194

NUT,3/4"-16, G8

3/4-16 H GR8 NP

2шт.

34

700710526

CAMSHAFT BEARING,19.075 mm ID x 44.45 mm OD x 25.4, 44.45 mm

BEARING - CAM FOLLOWER (3/4 INCH THREAD)

2шт.

34

700711707

CAM

BEARING - CAM FOLLOWER (1 INCH FINE THREAD)

2шт.

35

77206

FITTING

ZERK - DRIVE TYPE

2шт.
