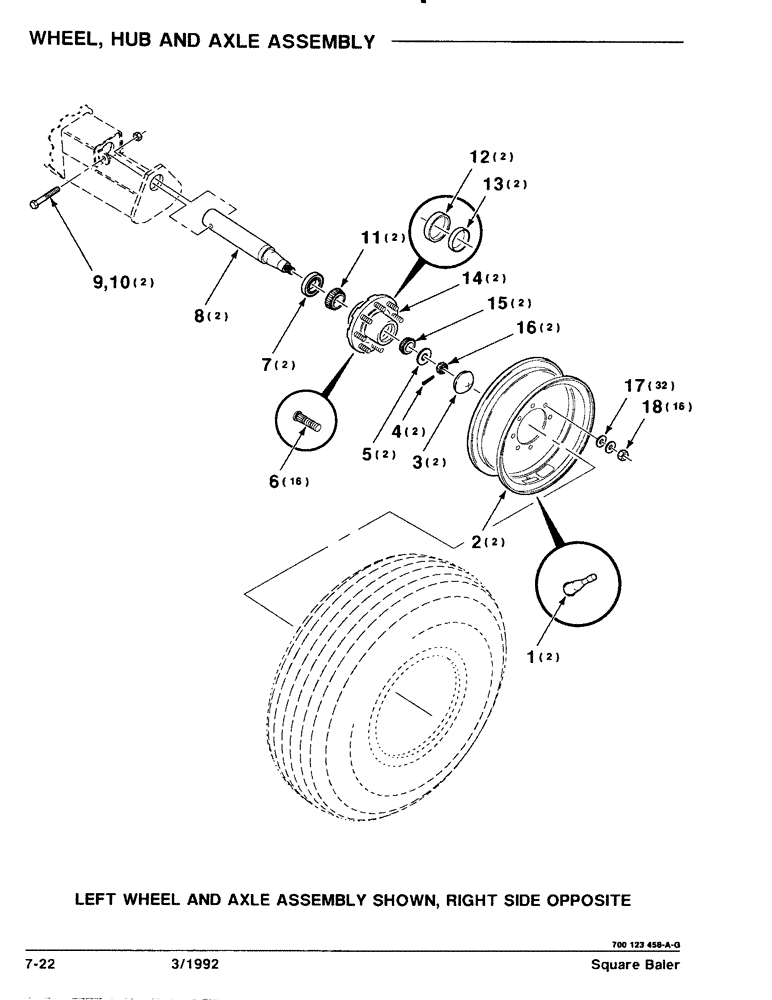

Запчасти Case IH 8570 (7-22) - WHEEL, HUB AND AXLE ASSEMBLY (12) - MAIN FRAME

1

727743

NEEDLE VALVE

- VALVE

2шт.

2

700710570

RIM

WHEEL - 16.1 X W16C

2шт.

3

826784

CAP

- HUB

2шт.

4

62463

PIN

1/4 X 1-3/4 COTTER PIN

2шт.

5

705574

WASHER,1 1/8" x 2" x .156", HDN

2шт.

6

700710568

BOLT,Rib Nk, 5/8" - 18 x 2 1/4", Gr 5

5/8-18 X 2-1/4 RIB NECK BOLT

16шт.

7

844555

SEAL

2шт.

8

700123459

SPINDLE

SHAFT - SPINDLE

2шт.

9

702134

SCREW

5/8-11 X 4 C

2шт.

10

704924

NUT

5/8-11 HTLN GR/B

2шт.

11

714634

CONE

BEARING - CONE

2шт.

12

714626

CUP

- BEARING

2шт.

13

713545

CUP

- BEARING

2шт.

14

700710569

HUB

ASM. (Includes Items 6, 12 & 13)

2шт.

15

713537

ROLLER BEARING

BEARING - CONE

2шт.

16

704692

NUT

1-14 SLOTTED HEX NUT

2шт.

17

705582

WASHER

5/8 HARDENED PLAIN WASHER

32шт.

18

704320

NUT

5/8-18H

16шт.
