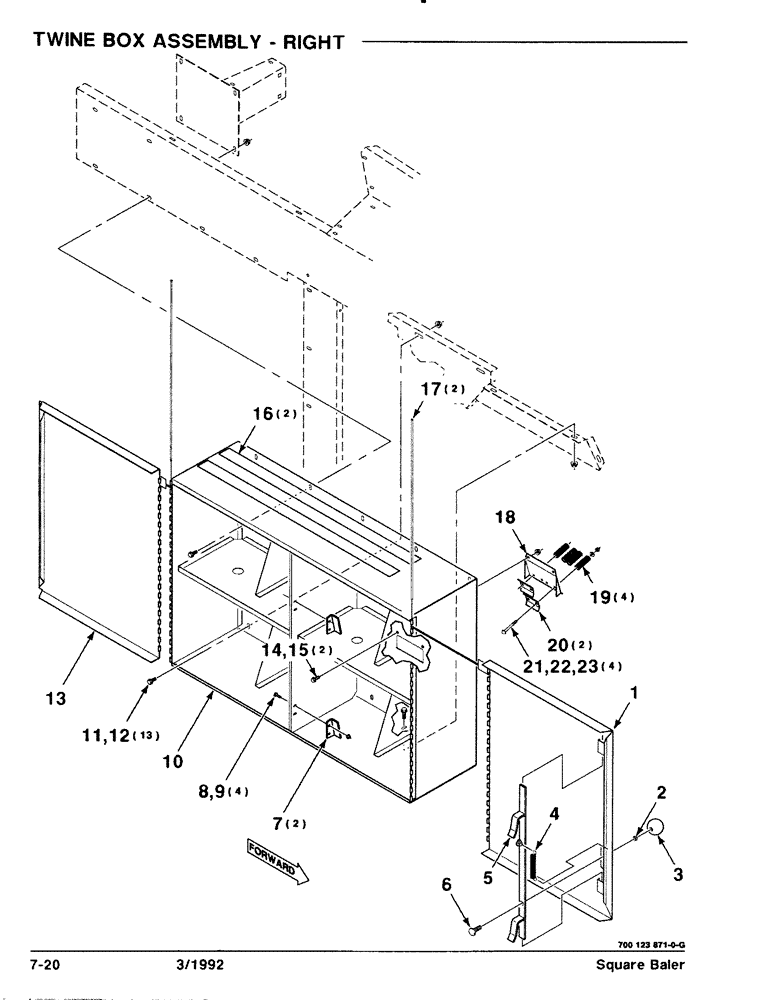

Запчасти Case IH 8570 (7-20) - TWINE BOX ASSEMBLY, RIGHT (12) - MAIN FRAME

1

700123882

DOOR

WA - TWINE BOX

1шт.

2

6270854

SPACER

1шт.

3

720326

BALL

KNOB

1шт.

4

58941

SPRING

- EXTENSION

1шт.

5

700123886

LATCH

WA

1шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1RHSNB

1шт.

7

700123889

LATCH

CATCH

2шт.

8

7770159

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

9

704221

NUT

1/4-20 HFSLN GR/F

4шт.

10

700123873

TERMINAL BOX

BOX WA- TWINE, RIGHT

1шт.

11

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

13шт.

12

704247

NUT

3/8-16 HFSLN GR/F

13шт.

13

700123866

DOOR

- TWINE BOX (Includes Decals)

1шт.

14

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS

2шт.

15

704239

FRONT AXLE

5/16-18 HFSLN GR/F

2шт.

16

6563530

WALL

SAFETY WALK

2шт.

17

65029

PIN

- HINGE

2шт.

18

700123888

LARGE PLATE

PLATE

1шт.

19

58925

SPRING

- COMPRESSION

4шт.

20

700123929

CLIP

2шт.

21

7770225

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/4", Gr 5

1/4-20 X 2-1/4 RHSNB

4шт.

22

705517

WASHER

1/4 HARDENED PLAIN WASHER

4шт.

23

704395

NUT

1/4-20 LHSN

4шт.
