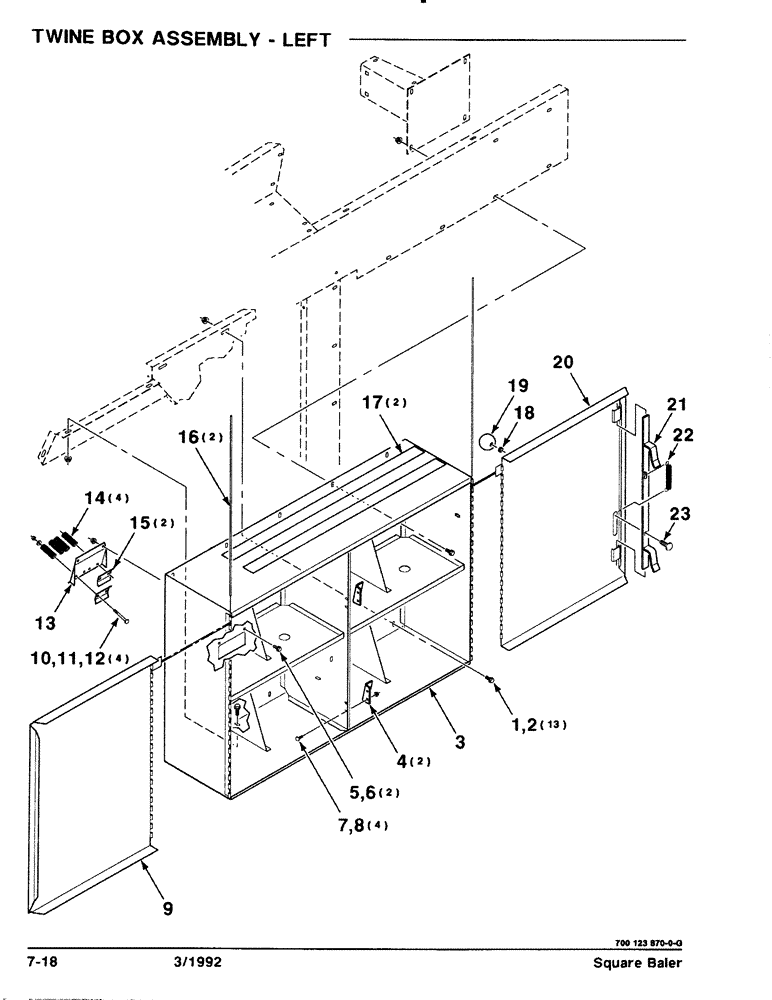

Запчасти Case IH 8570 (7-18) - TWINE BOX ASSEMBLY, LEFT (12) - MAIN FRAME

1

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

13шт.

2

704247

NUT

3/8-16 HFSLN GR/F

13шт.

3

700123872

BOX

WA - TWINE, LEFT

1шт.

4

700123889

LATCH

CATCH

2шт.

5

7771322

BOLT,Hex Serr, 5/16" - 18 x 1/2"

5/16-18 X 1/2 HFSS

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

5/16-18 HFSLN GR/F

2шт.

7

7770159

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 3/4", Gr 5

1/4-20 X 3/4 RHSNB

4шт.

8

523282

SERRATED NUT,Flg, USR, 1/4"-20

1/4-20 HFSLN GR/F

4шт.

9

700123884

DOOR

- TWINE BOX

1шт.

10

7770225

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 2 1/4", Gr 5

1/4-20 X 2-1/4 RHSNB

4шт.

11

705517

WASHER

1/4 HARDENED PLAIN WASHER

4шт.

12

704395

NUT

1/4-20 LHSN

4шт.

13

700123888

LARGE PLATE

PLATE

1шт.

14

58925

SPRING

- COMPRESSION

4шт.

15

700123929

CLIP

2шт.

16

65029

PIN

- HINGE

2шт.

17

6563530

WALL

SAFETY WALK

2шт.

18

6270854

SPACER

1шт.

19

720326

BALL

KNOB

1шт.

20

700123865

DOOR

WA (Includes Decals)

1шт.

21

700123886

LATCH

WA

1шт.

22

58941

SPRING

- EXTENSION

1шт.

23

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

1шт.
