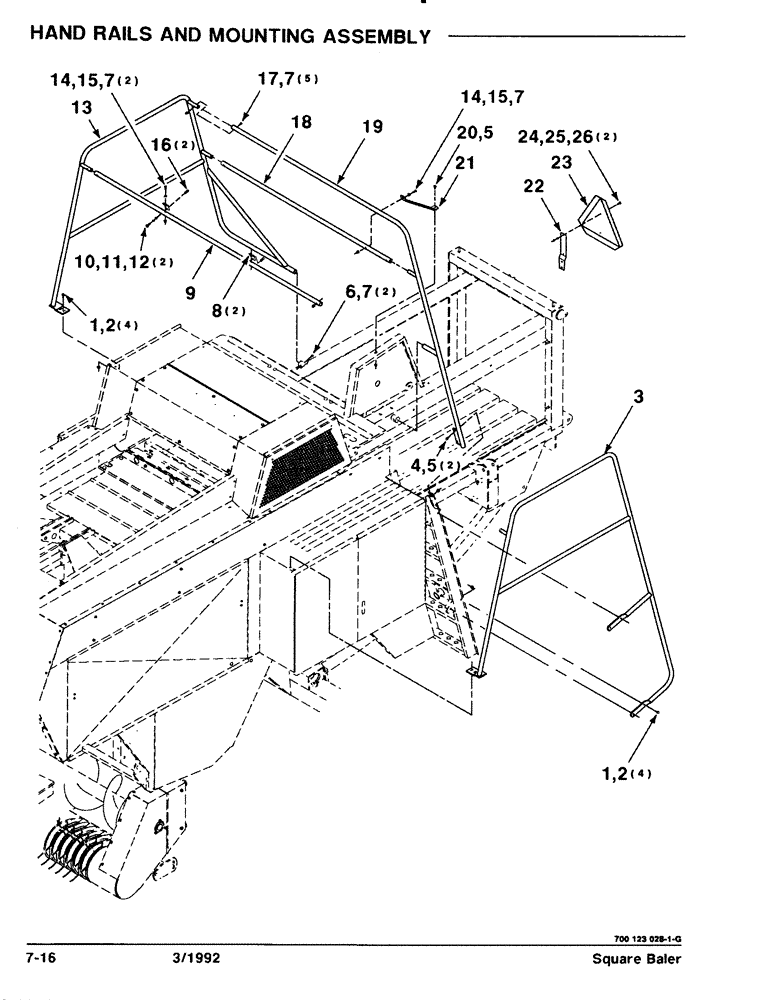

Запчасти Case IH 8570 (7-16) - HAND RAILS AND MOUNTING ASSEMBLY (12) - MAIN FRAME

1

7703432

BOLT,Hex, Serr, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HFSS

8шт.

2

704247

NUT

3/8-16 HFSLN GR/F

8шт.

3

700123980

RAIL

WA - LEFT

1шт.

4

7772049

BOLT,Hex Serr, 5/16" - 18 x 1"

5/16-18 X 1 HFSS

2шт.

5

704239

FRONT AXLE

5/16-18 HFSLN GR/F

3шт.

6

7703507

DECAL,Hex, 5/16" - 18 x 2", Gr 5

5/16-18 X 2 C

2шт.

7

704163

LOCK NUT

5/16-18 HTLN GR/B

10шт.

8

700123986

ANGLE

- SUPPORT

2шт.

9

700123974

PIPE

- CROSSBAR, FRONT

1шт.

10

700704838

SCREW

#10-32 X 1/2 CRPHMS

2шт.

11

705004

LOCK WASHER

#10 L

2шт.

12

70925966

WASHER

#10 PLAIN WASHER

2шт.

13

700123970

RAIL

WA - RIGHT

1шт.

14

7703838

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

5/16-18 X 1-3/4 C

3шт.

15

705525

WASHER

5/16 HARDENED PLAIN WASHER

3шт.

16

700710675

STUD

BALL - STUD, LATCH

2шт.

17

7701717

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16-18 X 1-1/2 C

5шт.

18

700123975

PIPE

- CROSSBAR, REAR

1шт.

19

700123977

RAIL

WA - RIGHT

1шт.

20

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

1шт.

21

700123985

ANGLE

- SUPPORT

1шт.

22

7020597

BRACKET

SPADE

1шт.

23

7020589

EMBLEM

- SMV

1шт.

24

700705088

SCREW,Cross Pan Hd, #10-24 x 3/4"

#10-24 X 3/4 CRPHMS

2шт.

25

705004

LOCK WASHER

#10 L

2шт.

26

704072

NUT

#10-24 H GR2

2шт.
