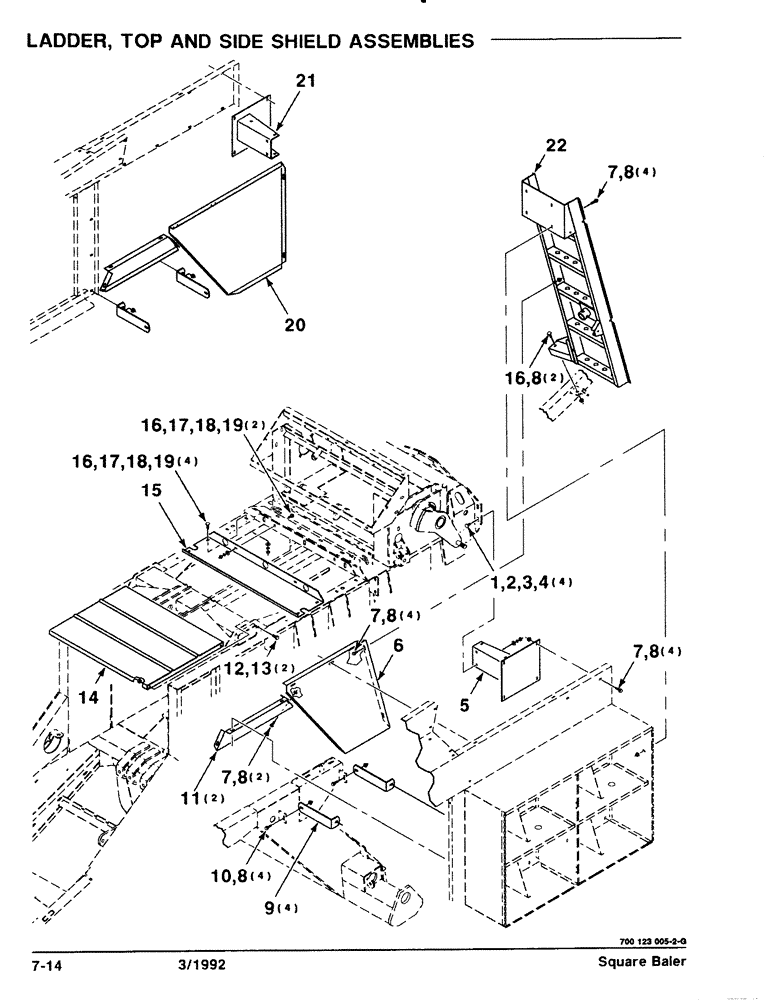

Запчасти Case IH 8570 (7-14) - LADDER, TOP AND SIDE SHIELD ASSEMBLIES (12) - MAIN FRAME

1

68619

BOLT,Round, 1/2" - 13 x 1 1/4", Grade 5

1/2-13 X 1-1/4 RHSNB

4шт.

2

705541

WASHER,0.53" ID x 1.06" OD x 0.14" Thk

1/2 HARDENED PLAIN WASHER

4шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

4

704031

NUT

1/2-13 H

4шт.

5

700123915

SUPPORT

WA - LEFT

1шт.

6

700123920

SHIELD

- LEFT

1шт.

7

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

14шт.

8

704247

NUT

3/8-16 HFSLN GR/F

20шт.

9

700123922

SUPPORT

- MTG

4шт.

10

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

4шт.

11

700123928

SHIELD

2шт.

12

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 X 1 C

2шт.

13

704858

LOCK NUT

1/2-13 HTLN GR/B

2шт.

14

700123924

LID

WA

1шт.

15

700123923

CHANNEL

- TOP

1шт.

16

700047

BOLT

3/8-16 X 1 RHSNB

8шт.

17

705533

WASHER

3/8 HARDENED PLAIN WASHER

6шт.

18

705038

CONTROL VALVE

3/8"

6шт.

19

704023

NUT,3/8"-16, G5

3/8-16 H

6шт.

20

700123921

SHIELD

- RIGHT

1шт.

21

700123916

SUPPORT

WA - RIGHT

1шт.

22

700123891

LADDER

WA

1шт.
