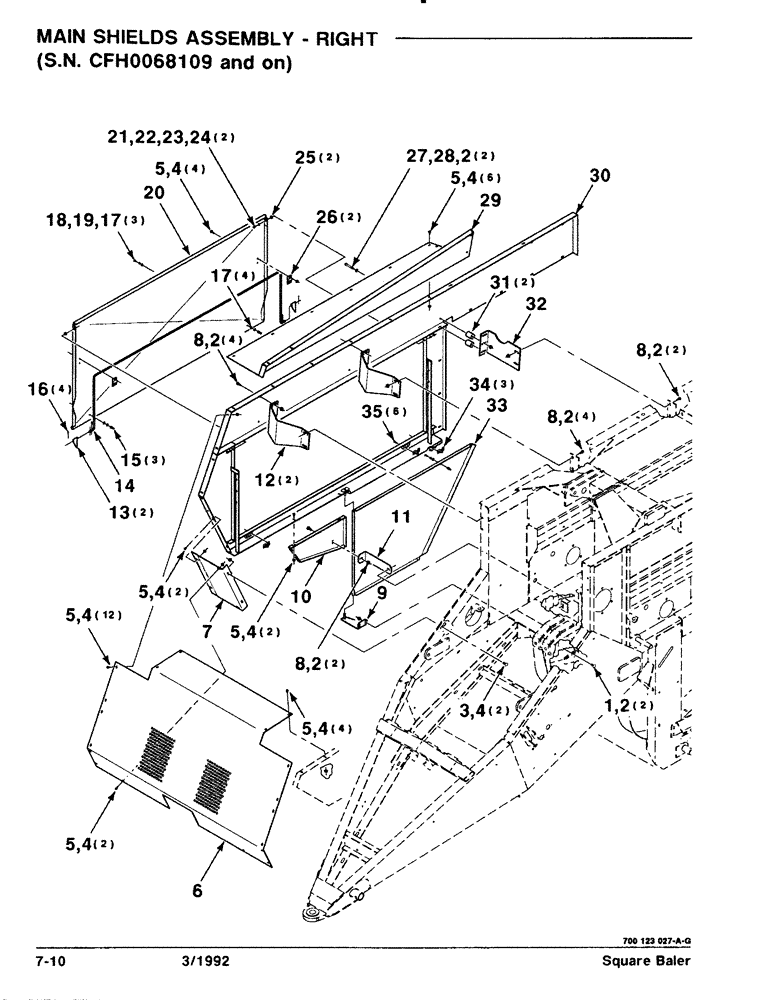

Запчасти Case IH 8570 (7-10) - MAIN SHIELDS ASSEMBLY, RIGHT, SERIAL NO. CFH0068109 AND ON (12) - MAIN FRAME

1

700047

BOLT

3/8-16 X 1 RHSNB

2шт.

2

704247

NUT

3/8-16 HFSLN GR/F

16шт.

3

7700578

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

5/16-18 X 1 RHSNB

2шт.

4

704239

FRONT AXLE

5/16-18 HFSLN GR/F

34шт.

5

7883325

BOLT,Hex, 5/16" - 18 x 3/4", Gr 120M

5/16-18 X 3/4 HWHMS

32шт.

6

700123204

SHIELD

- FRONT

1шт.

7

700123949

PANEL

- SHIELD

1шт.

8

7883382

BOLT,Hex, 3/8" - 16 x 1", Gr 120M

3/8-16 X 1 HWHMS

12шт.

9

700123219

SUPPORT

WA - RIGHT

1шт.

10

700123948

SHIELD

- LOWER, RIGHT

1шт.

11

700123964

ANGLE

- LOWER

1шт.

12

700123951

ANGLE

2шт.

13

700113992

GUIDE

2шт.

14

700123960

ROD

1шт.

15

700710675

STUD

- LATCH

3шт.

16

62075

PIN

1/8 X 3/4 COTTER PIN

4шт.

17

70925966

WASHER

#10 PLAIN WASHER

7шт.

18

700704838

SCREW

#10-32 X 1/2 CRPHMS GR2

3шт.

19

705004

LOCK WASHER

#10 L

3шт.

20

700123958

SUPPORT

PANEL WA - DOOR

1шт.

21

7703499

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 C

2шт.

22

705525

WASHER

5/16 HARDENED PLAIN WASHER

2шт.

23

705020

LOCK WASHER

5/16"

2шт.

24

704015

NUT,5/16"-18, G5

5/16-18 H

2шт.

25

6514772

SPACER

2шт.

26

700123961

MOUNTING PARTS

MOUNTING - SUPPORT

2шт.

27

7701899

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

3/8-16 X 2-1/2 C

2шт.

28

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

3/8 HARDENED PLAIN WASHER

2шт.

29

700123245

SHIELD

- RIGHT, TOP

1шт.

30

700123932

SHIELD

WA - RIGHT

1шт.

31

700123965

SPACER

2шт.

32

700123962

SUPPORT

1шт.

33

700123953

SHIELD

- LOWER, RIGHT

1шт.

34

700710676

CONTAINER

RECEIVER - STUD

3шт.

35

1705912

SCREW,#8 - 18 x 1/2"

#8-18 X 1/2 CRTHTFTS

6шт.
